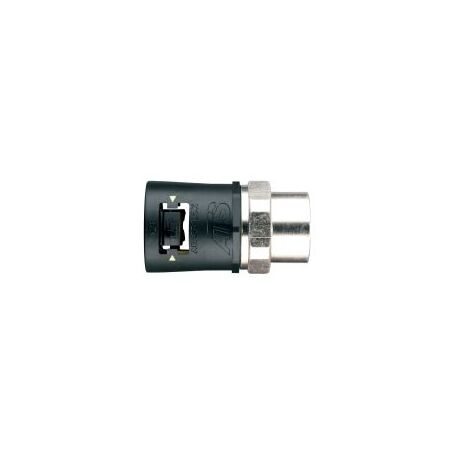

Adaptalok Straight Swivel 28mm M25 Female Black Adaptaflex
Adaptalok straight swivel female fitting features 28mm conduit size, M25 female thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for external threaded entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok ATS SFA fitting, AT28/M25/SFA/BLB, 28 mm swivel female conduit fitting, nylon conduit connector
Technical Specifications
- Conduit Size: 28 mm nominal
- Thread Type: M25 x 1.5 internal female thread
- Connection: Straight swivel fitting
- Material: Polyamide (Nylon) 66 body, nickel-plated brass thread and TPE seal
- Colour: Black body with blue elastomer
- Ingress Protection: IP66, IP67, IP68 and IP69K
- IP68 Performance: 4 bar for 30 minutes
- Operating Temperature: -50°C to +120°C static; -45°C to +120°C dynamic
- Thread Length: 12.3 mm
- Connection Method: Snap connection
- Installation: For attachment to external threads and other fittings
- Fire Performance: Self-extinguishing, low smoke and halogen-free
- Environmental Compliance: RoHS3, REACH, TSCA Section 6(h) and POPs compliant
- Dimensions (H x L x W): 37.2mm x 48.5mm x 37.2mm
- Weight: 0.1 kg
Key Features
- Swivel internal female thread simplifies alignment during conduit installation
- Integrated conduit seal and face seal washer help prevent incorrect assembly
- High ingress protection for exposed and demanding electrical installations
- High-impact nylon 66 body with nickel-plated brass threaded section
- Suitable for Adaptaflex PA, PR, PADL and PF flexible non-metallic conduits
- Blue elastomer version provides the IP66–IP69K performance classification
- Lightweight alternative to many metallic conduit fittings
- Metric locknut supplied for metric-thread versions
Applications
- Connecting 28 mm flexible non-metallic conduit to M25 threaded entries
- Electrical control panels and enclosures
- Industrial automation and machine building
- Outdoor and exposed cable protection systems
- Manufacturing, processing, transport and infrastructure equipment
Standards & Compliance
- AS/NZS 61386.23:2015 – applicable requirements for flexible conduit systems, used with AS/NZS 61386.1
- Manufacturer technical data references BS EN 61386-1 and BS EN 61386-23 testing for conduit-system performance
Environmental Benefits
- RoHS3, REACH, TSCA and POPs compliance supports reduced use of restricted substances
- Nylon 66 construction reduces fitting weight compared with many metallic alternatives
- High ingress protection and impact resistance can extend service life and reduce replacement waste
- Halogen-free and low-smoke material construction supports improved end-of-life and fire-performance considerations
Warranty Information
ABB standard warranty terms apply; ABB Australia general terms state a 24-month warranty period from delivery unless otherwise agreed, subject to the applicable terms and conditions. Australian Consumer Law rights also apply where relevant.
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
