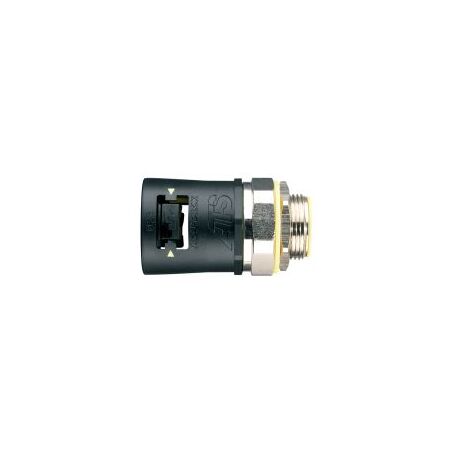

Adaptalok Straight Swivel 34mm Conduit M32 Male Black Adaptaflex
Adaptalok straight swivel fitting features 34mm conduit size, M32 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AL34/M32/SA/BL, Adaptaflex Type SA fitting, swivel external male thread fitting, nylon conduit gland
Technical Specifications
- Product Type: Straight fitting with swivel external male thread
- Nominal Conduit Size: 34 mm
- Thread: M32 x 1.5 male metric thread
- Thread Length: 17 mm
- Material: Polyamide (nylon) 66 body with nickel-plated brass thread and TPE sealing component
- Colour: Black
- Ingress Protection: IP66 to IP69 when correctly assembled with compatible conduit
- Compatible Conduit: Type PA, CP, PR and PF
- Temperature Range, Static Applications: -50°C to +120°C
- Temperature Range, Moving Applications: -45°C to +120°C
- Installation: Fits threaded entries and knockouts using a separately ordered locknut
- Thread Standard: EN 60423 and BS 3643 metric thread profile
- Compliance: RoHS compliant
- Dimensions (H x L x W): 49.8mm x 49.8mm x 43.2mm
- Weight: 0.101 kg
Key Features
- Straight swivel design with external M32 male thread
- Suitable for nominal 34 mm flexible conduit
- Polyamide 66 body for non-metallic cable protection systems
- Nickel-plated brass male thread for threaded enclosure entry connection
- IP66 to IP69 protection when used with compatible conduit and correctly installed
- Suitable for Type PA, CP, PR and PF Adaptaflex conduit systems
- Black finish for standard cable management installations
Applications
- Electrical control panels and enclosures
- Industrial machinery and automation equipment
- Power and data cable protection
- Commercial and industrial cable management systems
- Installations requiring flexible conduit with a threaded enclosure entry
Standards & Compliance
- AS/NZS 2053.1:2001 is the relevant general Australian/New Zealand standard for conduit systems and fittings; product-specific AS/NZS certification is not stated by the manufacturer.
Environmental Benefits
- RoHS compliance supports reduced use of restricted hazardous substances
- The nickel-plated brass component is recyclable at end of service life
- Durable PA66 and brass construction can reduce replacement frequency and material waste
Warranty Information
ABB Australia standard sale conditions provide a 12-month warranty against defects in materials and workmanship, subject to correct handling, installation, use and storage. Australian Consumer Law rights apply separately.
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical distribution channels.
