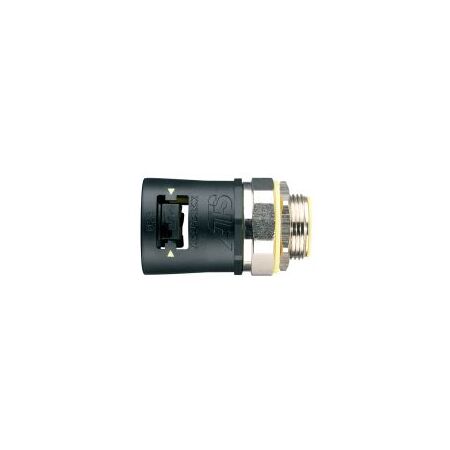

Adaptalok Straight Swivel 42mm Conduit M40 Male Black Adaptaflex
Adaptalok straight swivel fitting features 42mm conduit size, M40 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok ATS Type SA straight fitting, swivel external male conduit connector, AT42/M40/SA/BL
Technical Specifications
- Conduit Size: 42 mm nominal
- Thread Type: Metric external male thread
- Thread Size: M40 x 1.5
- Thread Material: Nickel-plated brass
- Body Material: Polyamide nylon 66
- Seal Material: Thermoplastic elastomer (TPE)
- Colour: Black
- Fitting Type: Straight swivel external male
- Ingress Protection: IP66 to IP69
- Compatible Conduit: PA, PR and PF conduit systems
- Thread Length: Approximately 17.5 mm
- Environmental Compliance: RoHS and REACH listed for the Adaptalok ATS range
- Dimensions (H x L x W): 78.1mm x 54.2mm x 53.8mm
- Weight: 0.1 kg
Key Features
- Swivel external male thread simplifies conduit alignment during installation
- Connects 42 mm flexible conduit to threaded entries or knockouts
- Nylon 66 body provides a lightweight, corrosion-resistant construction
- Nickel-plated brass M40 thread for durable mechanical connection
- TPE sealing element supports liquid-tight cable protection
- Suitable for PA, PR and PF Adaptaflex conduit systems
- High ingress protection rated from IP66 to IP69
- Designed for demanding industrial, automation, building and OEM applications
Applications
- Electrical cable protection in industrial machinery and automation equipment
- Commercial and industrial building services
- Control panels, enclosures and equipment housings
- Marine and outdoor cable-management installations
- Connections using Adaptaflex PA, PR or PF flexible conduit
Standards & Compliance
- AS/NZS 61386.23:2015 — applicable Australian/New Zealand standard for flexible conduit systems; verify the complete conduit-and-fitting assembly for the required classification
- IEC 61386 performance classification referenced for Adaptaflex flexible conduit systems
Environmental Benefits
- Polyamide and elastomer components can be separated for recycling where local facilities accept these materials
- Corrosion-resistant construction and high ingress protection can extend service life and reduce replacement waste
- Protects cables from water and dust ingress, helping reduce premature cable and equipment replacement
- RoHS and REACH declarations for the Adaptalok ATS range support restricted-substance management
Warranty Information
ABB Australia standard sale terms provide a 12-month warranty against defects in materials and workmanship, subject to the applicable terms, correct handling and installation, and Australian Consumer Law rights.
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and industrial distributors.
