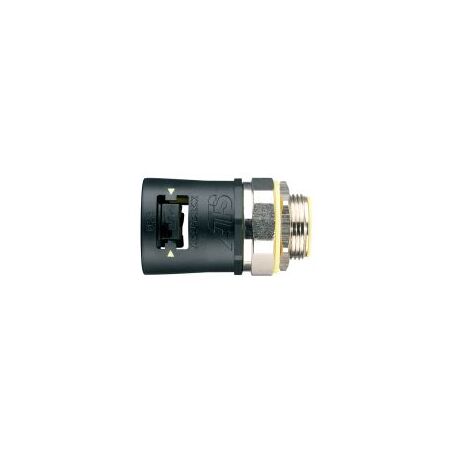

Adaptalok Straight Swivel 54mm Conduit M50 Male Black Adaptaflex

BRAND: CABAC
SKU: AT54/M50/SA/BLY
$191.90 List price: $255.90
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok straight swivel fitting features 54mm conduit size, M50 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.

Alternatively Known As: Adaptaflex AT54/M50/SA/BLY, Adaptalok straight swivel fitting, 54mm M50 male conduit connector

Technical Specifications
  • Product Type: Straight swivel conduit fitting, Type SA
  • Nominal Conduit Size: 54mm
  • Thread: M50 x 1.5 male metric thread
  • Thread Material: Nickel-plated brass
  • Body Material: Polyamide (nylon) 66 with TPE elastomer
  • Colour: Black body with yellow elastomer
  • Ingress Protection: IP66 as standard; IP67, IP68 and IP69 with appropriate seal
  • Compatible Conduit: PA, PR, PADL and PF types
  • Operating Temperature: -50°C to +120°C static; -45°C to +120°C dynamic
  • Thread Standard: EN 60423 and BS 3643
  • Manufacturer Part Number: AT54/M50/SA/BLY
  • ABB Order Code: 7TCA296170R0767
  • Dimensions (H x L x W): 70mm x 67.5mm x 66.2mm
  • Weight: 0.304 kg
Key Features
  • Straight swivel design allows conduit alignment after fitting installation
  • M50 male thread for connection to threaded enclosures, glands or entry points
  • Suitable for 54mm nominal PA, PR, PADL and PF flexible conduit
  • Nylon 66 body provides high impact resistance and low weight
  • Nickel-plated brass male thread provides robust mechanical connection
  • IP66 protection as standard, with higher IP ratings available using the appropriate seal
  • Suitable for static and moving applications across the specified temperature range
Professional Installation Requirements
  • Installation should be carried out by a suitably qualified electrical tradesperson in accordance with the manufacturer's instructions and applicable wiring regulations, including AS/NZS 3000 where used in an electrical installation.
Applications
  • Electrical cable protection systems
  • Industrial control panels and enclosures
  • Machinery and automation equipment
  • Commercial and infrastructure cable management
  • Outdoor or washdown-prone installations requiring high ingress protection
Standards & Compliance
  • AS/NZS 61386.1:2015 — General requirements for conduit systems; applicable to conduit and fitting systems
  • AS/NZS 61386.23:2015 — Particular requirements for flexible conduit systems; applicable to flexible conduit and fitting systems
Environmental Benefits
  • Durable nylon 66 and nickel-plated brass construction can extend service life and reduce replacement waste
  • Metal thread components are recoverable through established metal recycling streams
  • Suitable for protecting cables and supporting longer service life of electrical installations
Warranty Information

ABB Australia standard sale terms provide a 12-month warranty against defects in materials and workmanship, subject to the stated conditions and exclusions. Australian Consumer Law rights also apply where relevant.

Available Now

Available through Adaptaflex/ABB and authorised Australian electrical distribution channels.
