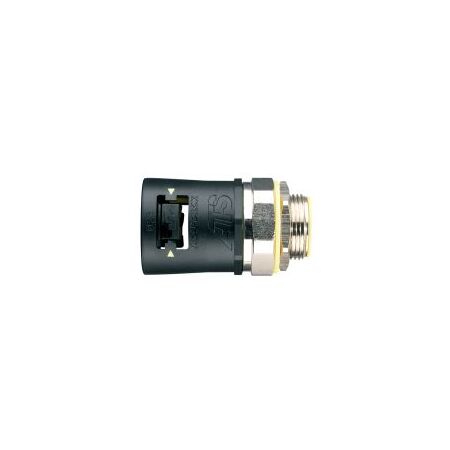

Adaptalok Straight Swivel 54mm Conduit M63 Male Black Adaptaflex
Adaptalok straight swivel fitting features 54mm conduit size, M63 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex Adaptalok ATS Type SA, 54 mm Swivel Male Conduit Fitting, M63 Cable Conduit Connector
Technical Specifications
- Fitting Type: Straight swivel external male thread
- Nominal Conduit Size: 54 mm
- Thread: M63 x 1.5 metric male thread
- Body Material: Polyamide 66 (nylon 66)
- Thread Material: Nickel-plated brass
- Sealing Material: TPE
- Body Colour: Black
- Ingress Protection: IP66 to IP69
- Static Temperature Range: -50°C to +120°C
- Dynamic Temperature Range: -45°C to +120°C
- Compatible Conduit: PA, PI, PR, PADL and PF
- Installation: Designed for insertion into threaded entries and knockouts; metric locknut required
- Dimensions (H x L x W): 70mm x 67.5mm x 66.2mm
- Weight: 0.1 kg
Key Features
- Straight swivel design allows conduit alignment after installation
- Suitable for 54 mm flexible conduit systems
- Nickel-plated brass external male thread for durable panel or enclosure connection
- Polyamide 66 and TPE construction provides resistance to moisture and mechanical wear
- IP66 to IP69 protection when correctly assembled with compatible conduit
- Suitable for static and moving applications within the specified temperature ranges
Professional Installation Requirements
- Installation should be completed by a suitably qualified electrical or cable-management professional in accordance with the manufacturer's instructions and applicable wiring requirements.
Applications
- Electrical cable protection systems
- Control panels and electrical enclosures
- Machinery and industrial equipment
- Automation and instrumentation installations
- Commercial and infrastructure cable management
- Flexible conduit runs using PA, PI, PR, PADL or PF conduit
Standards & Compliance
- AS/NZS 61386.1:2015, general requirements for conduit systems for cable management
- AS/NZS 61386.23:2015, particular requirements for flexible conduit systems
Environmental Benefits
- Nickel-plated brass thread components are recyclable at end of service life
- Durable polyamide 66 and TPE construction can reduce replacement frequency and material waste
- Supports organised cable protection, helping extend the service life of enclosed cables and wiring
Warranty Information
ABB Australia sale terms provide a defects warranty for goods, generally covering defects arising within 12 months of delivery subject to stated conditions; Australian Consumer Law rights also apply.
Available Now
Available through ADAPTAFLEX, ABB Installation Products and authorised Australian electrical distributors.
