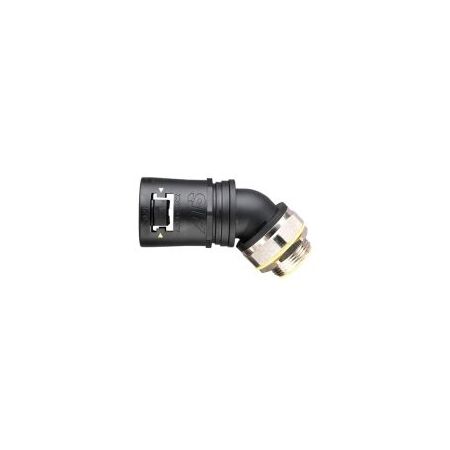

Adaptalok Swivel 45° Elbow 13mm M16 Black Adaptaflex

BRAND: CABAC
SKU: AT13/M16/S45/BLY
$34.20 List price: $45.60
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok swivel 45 degree elbow features 13mm conduit size, M16 nickel plated brass male thread and black nylon 66 TPE body. Ideal for PA, PR, PADL and PF conduit.

Alternatively Known As: Adaptaflex S45 Swivel Elbow, 45 Degree Flexible Conduit Fitting, AT13/M16/S45

Technical Specifications
  • Product Type: 45° swivel external male-thread conduit fitting
  • Nominal Conduit Size: 13 mm
  • Nominal Conduit Bore: 10 mm
  • Thread Size: M16 x 1.5
  • Thread Type: Metric external male thread
  • Thread Material: Nickel-plated brass
  • Body Material: Polyamide nylon 66
  • Seal Material: TPE
  • Body Colour: Black
  • Compatible Conduit: PA, PR, PADL and PF series
  • Ingress Protection: Up to IP68 when correctly assembled with compatible conduit and sealing components
  • Operating Temperature: -50°C to +120°C static; -45°C to +120°C moving
  • Locknut: Required for insertion into threaded entries and knockouts; supplied separately
  • Product Reference: AT13/M16/S45/BL, with elastomer colour suffix required for final configuration
  • Dimensions (H x L x W): 47.1mm x 33mm x 21.3mm
  • Weight: 0.1 kg
Key Features
  • Swivel 45° elbow design helps route conduit through tight spaces
  • External M16 male thread for connection to threaded entries and knockouts
  • Suitable for 13 mm nominal flexible conduit with a 10 mm nominal bore
  • Durable nylon 66 body with nickel-plated brass thread
  • Integral TPE sealing arrangement supports high ingress protection when correctly installed
  • Compatible with PA, PR, PADL and PF conduit systems
  • Lightweight construction with improved fatigue life and return-to-shape characteristics
Professional Installation Requirements
  • Installation should be carried out by a suitably qualified electrical installer in accordance with the applicable wiring rules and conduit manufacturer's instructions. Select the correct elastomer colour, conduit type and locknut for the required installation environment.
Applications
  • Electrical cable protection systems
  • Control panels and electrical enclosures
  • Industrial machinery wiring
  • Automation and instrumentation installations
  • Rail, transport and infrastructure equipment
  • Installations requiring angled flexible conduit entry
Standards & Compliance
  • Designed for flexible conduit systems covered by AS/NZS 61386.23:2015; product-specific Australian certification should be confirmed for the complete installed system
Environmental Benefits
  • RoHS-compliant material selection helps restrict hazardous substances
  • Durable nylon 66 construction supports extended service life and reduces replacement waste
  • Lightweight non-metallic construction can reduce material use and handling energy compared with heavier fittings
Warranty Information

ABB Australia standard terms provide a 12-month warranty against defects in design, materials and workmanship, subject to the stated warranty conditions and exclusions.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
