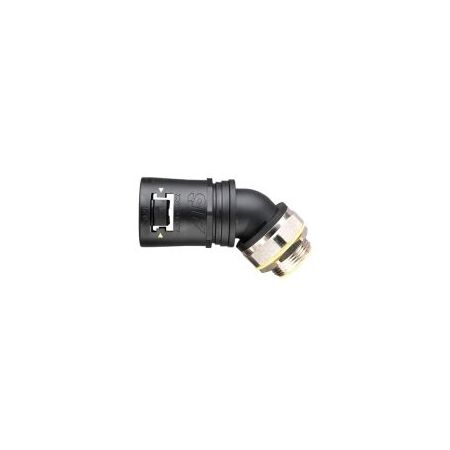

Adaptalok Swivel 45° Elbow 16mm M16 Black Adaptaflex

BRAND: CABAC
SKU: AT16/M16/S45/BLY
$38.60 List price: $51.50
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok swivel 45 degree elbow features 16mm conduit size, M16 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.

Alternatively Known As: Adaptaflex S45 Swivel Elbow, Adaptalok ATS 45° Conduit Elbow, 16 mm M16 Conduit Fitting

Technical Specifications
  • Fitting Type: Adaptalok ATS Type S45 swivel external male-thread elbow
  • Nominal Conduit Size: 16 mm
  • Thread: M16 x 1.5 male metric thread
  • Elbow Angle: 45°
  • Body Material: Polyamide nylon 66
  • Thread Material: Nickel-plated brass
  • Seal Material: Thermoplastic elastomer TPE
  • Body Colour: Black
  • Elastomer Colour: Yellow or blue, depending on selected variant
  • Ingress Protection: IP66 as standard; IP67, IP68 and IP69K with appropriate sealing arrangement
  • IP68 Rating: Up to 4 bar for 30 minutes with heavyweight conduit, or 2 bar for 30 minutes with standard-weight conduit
  • Temperature Range: -50°C to +120°C static; -45°C to +120°C moving
  • Compatible Conduit: Adaptaflex PA, PI, PR, PADL and PF conduit types
  • Threaded Entry: Suitable for threaded entries and knockouts; metric versions require a locknut
  • Fire Performance: Self-extinguishing, low-smoke and halogen-free material
  • Mechanical Protection: High impact resistance
  • Dimensions (H x L x W): 23.7mm x 41.7mm x 21.2mm
  • Weight: 0.1 kg
Key Features
  • Swivel external male thread allows the fitting to be aligned after conduit installation
  • 45° bend assists cable routing where a straight entry is unsuitable
  • Integrated sealing design supports high ingress protection when correctly assembled
  • Lightweight nylon 66 body with nickel-plated brass threaded section
  • Suitable for PA, PI, PR, PADL and PF flexible conduit systems
  • Wide operating temperature range for static and moving applications
  • Black body suitable for general industrial cable protection installations
Professional Installation Requirements
  • Installation should be carried out by a suitably qualified electrical tradesperson in accordance with AS/NZS 3000 and the conduit manufacturer's assembly instructions. Use the correct locknut and sealing components to achieve the stated IP rating.
Applications
  • Industrial electrical wiring and cable protection
  • Control panels and electrical enclosures
  • Automation and machinery wiring
  • Power, instrumentation and communications cabling
  • Data centre and ICT cable management
  • Vehicle, rail and transport equipment cable protection
Standards & Compliance
  • Applicable conduit-system requirements include AS/NZS 61386.1 and AS/NZS 61386.23; the manufacturer's technical documentation references the equivalent BS EN 61386-1 and BS EN 61386-23 requirements.
  • Electrical installation should comply with AS/NZS 3000 where the fitting forms part of an electrical wiring installation.
Environmental Benefits
  • Durable nylon 66 construction can extend service life and reduce replacement waste
  • Lightweight construction reduces material use and transport weight compared with heavier metallic fittings
  • Supports organised, protected cable installations that can simplify maintenance and reduce premature cable replacement
Warranty Information

Covered by the manufacturer's standard product warranty against defects in materials and workmanship; warranty period and conditions depend on the applicable regional sales terms.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
