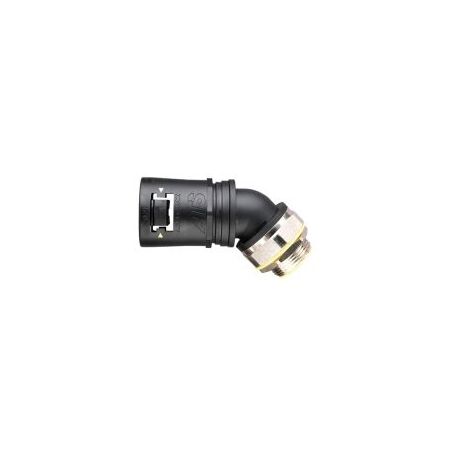

Adaptalok Swivel 45° Elbow 21mm M20 Black Adaptaflex
Adaptalok swivel 45 degree elbow features 21mm conduit size, M20 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex S45 Swivel Elbow, Adaptalok ATS 45 Degree Elbow, AL21/M20/S45/BL, AT21/M20/S45/BLY
Technical Specifications
- Fitting Type: 45° elbow body with swivel external male thread
- Nominal Conduit Size: 21 mm
- Thread: M20 x 1.5 male metric thread
- Material: Polyamide (Nylon) 66 body, nickel-plated brass thread and TPE seal
- Colour: Black body with elastomer seal
- Ingress Protection: IP66, IP67, IP68 and IP69K as specified for the ATS S45 system
- Temperature Range: -50°C to +120°C static; -45°C to +120°C moving
- Compatible Conduit: PA, PI, PR, PADL and PF
- Installation: For threaded entries and knockouts; metric locknut supplied or ordered according to variant
- Dimensions (H x L x W): 47mm x 48.8mm x 29mm
- Weight: 0.1 kg
Key Features
- Swivel 45° elbow design helps align conduit runs and reduce installation stress
- M20 external male thread for connection to enclosures and threaded entries
- Suitable for 21 mm Adaptalok-compatible conduit
- Nylon 66 construction with nickel-plated brass thread
- TPE integrated sealing element supports high ingress protection
- IP66 to IP69K protection for demanding industrial environments
- UV-resistant and low-smoke, halogen-free construction
- Suitable for static and moving conduit applications
Applications
- Electrical cable protection systems
- Industrial machinery and control panels
- Automation and instrumentation installations
- Motor and equipment connections requiring flexible conduit
- Outdoor and washdown-prone cable management installations
Standards & Compliance
- AS/NZS 61386.23:2015 is the applicable Australian/New Zealand standard for flexible conduit systems; product-specific Australian certification was not verified.
Environmental Benefits
- Nickel-plated brass components and other metallic parts can be recovered through established metal recycling streams
- Durable nylon 66 and sealing materials support extended service life and reduced replacement waste
- Low-smoke, halogen-free construction can reduce hazardous emissions in fire conditions
Warranty Information
ABB Australia standard terms provide a 12-month warranty period from delivery against defects in design, materials and workmanship, subject to the applicable terms and exclusions.
Available Now
Available through ADAPTAFLEX/ABB and authorised Australian electrical and cable-management distributors.
