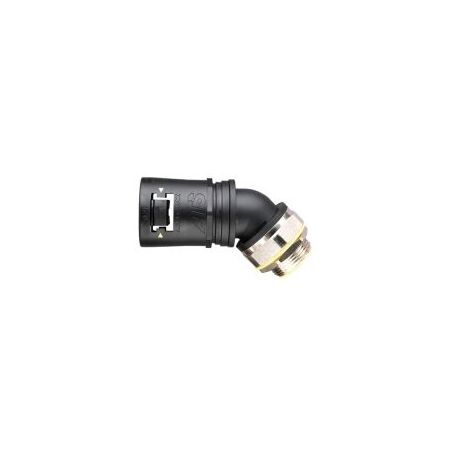

Adaptalok Swivel 45° Elbow 28mm M25 Black Adaptaflex
Adaptaflex Adaptalok 45 degree swivel elbow has 28mm conduit size, M25 nickel plated brass male thread and black nylon 66 body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex Type S45 elbow, 45-degree conduit elbow, swivel external male thread conduit fitting, AL28/M25/S45/BL
Technical Specifications
- Manufacturer Part Number: AL28/M25/S45/BL
- Conduit Size: 28mm nominal
- Fitting Type: 45° swivel elbow with external male thread
- Thread Size: M25 x 1.5
- Thread Material: Nickel-plated brass
- Body Material: Polyamide (nylon) 66
- Seal Material: Thermoplastic elastomer (TPE)
- Colour: Black
- Compatible Conduit: PA, PI, PR, PADL and PF series
- Ingress Protection: IP66, IP67, IP68 and IP69K
- Static Temperature Range: -50°C to +120°C
- Dynamic Temperature Range: -45°C to +120°C
- Thread Standard: EN 60423 and BS 3643 metric thread
- Manufacturer Classification: BS EN 61386-1 and BS EN 61386-23 approved
- Dimensions (H x L x W): 70.2mm x 74.9mm x 49.9mm
- Weight: 0.125 kg
Key Features
- 45° elbow configuration for directional cable routing
- Swivel external male thread for installation into knockouts and threaded entries
- Integrated seal system for improved cable protection
- Supplied with a locknut for metric-thread installations
- High resistance to water and dust ingress when correctly installed
- High UV resistance and corrosion-free non-metallic body
- Low-smoke and halogen-free construction
- Suitable for static and dynamic cable-management applications
Applications
- Industrial control panels and electrical enclosures
- Machine-building and factory-automation equipment
- Protection of power and data cabling
- Commercial and industrial cable-management systems
- Installations using Adaptaflex PA, PI, PR, PADL or PF flexible conduit
Standards & Compliance
- Relevant product standard: AS/NZS 61386.1, Conduit systems for cable management – General requirements
- Relevant product standard: AS/NZS 61386.23, Conduit systems for cable management – Particular requirements for flexible conduit systems
- Australian installation requirements may also be governed by AS/NZS 3000, Electrical installations
Environmental Benefits
- Nylon 66 construction is corrosion-resistant and can support a long service life in demanding environments
- Non-metallic construction avoids rust and reduces maintenance associated with corrosion
- Durable conduit protection can reduce cable replacement and installation waste
- Low-smoke and halogen-free construction supports improved material performance in fire-sensitive applications
Warranty Information
ABB/Adaptaflex manufacturer warranty terms apply; a specific warranty duration for this passive fitting was not published. Confirm applicable warranty conditions with the authorised distributor at purchase.
Available Now
Available through ABB/Adaptaflex and authorised Australian electrical and industrial distributors.
