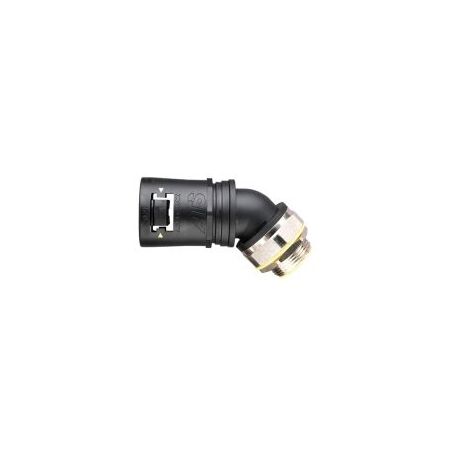

Adaptalok Swivel 45° Elbow 34mm M32 Black Adaptaflex
Adaptaflex Adaptalok 45 degree swivel elbow has 34mm conduit size, M32 nickel plated brass male thread and black nylon 66 body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 45° conduit elbow fitting, swivel external male thread fitting, Adaptalok ATS elbow
Technical Specifications
- Product Type: 45° swivel external male thread elbow
- Series: Adaptalok ATS
- Nominal Conduit Size: 34 mm
- Thread Size: M32 x 1.5 male thread
- Thread Length: 17 mm
- Body Material: Polyamide Nylon 66
- Thread Material: Nickel-plated brass
- Seal Material: Thermoplastic elastomer
- Colour: Black body with elastomer seal
- Ingress Protection: IP68, 4 bar for 30 minutes
- Compatible Conduit: Adaptaflex PA, PR and PF conduit
- Operating Temperature: -50°C to +120°C static; -45°C to +120°C moving
- Connection Method: Snap connection
- Environmental Compliance: RoHS3 and REACH compliant
- Dimensions (H x L x W): 98.7mm x 81.7mm x 44mm
- Weight: 0.1 kg
Key Features
- 45° conduit direction change for restricted or offset cable routes
- Swivel external male thread allows alignment after conduit installation
- Fast-fit Adaptalok ATS design with integrated conduit sealing arrangement
- Suitable for 34 mm PA, PR and PF flexible conduit systems
- Nickel-plated brass M32 thread provides durable panel or enclosure connection
- High ingress protection for demanding cable-management applications
- Black PA66 construction provides a lightweight, corrosion-resistant fitting
Applications
- Connecting 34 mm flexible conduit to threaded entries and enclosure knockouts
- Electrical control panels and switchboards
- Industrial automation and machinery
- Commercial and institutional building services
- Power, energy, ICT and data-centre cable protection
- Automotive, marine, rail and infrastructure cable-management installations
Standards & Compliance
- AS/NZS 61386.23 is the applicable Australian/New Zealand standard series reference for flexible conduit systems; confirm product-specific local certification requirements before installation.
Environmental Benefits
- Lightweight nylon construction reduces material use and transport weight compared with equivalent metal fittings
- Corrosion-resistant materials support extended service life and reduce replacement waste
- RoHS3 and REACH compliance supports restriction of hazardous substances in the product
- Durable IP68 sealing helps protect cabling and reduce premature cable-system replacement
Warranty Information
ABB/Adaptaflex warranty coverage is subject to the applicable regional ABB installation-products warranty terms and proof of purchase; confirm the current warranty conditions with the authorised distributor.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
