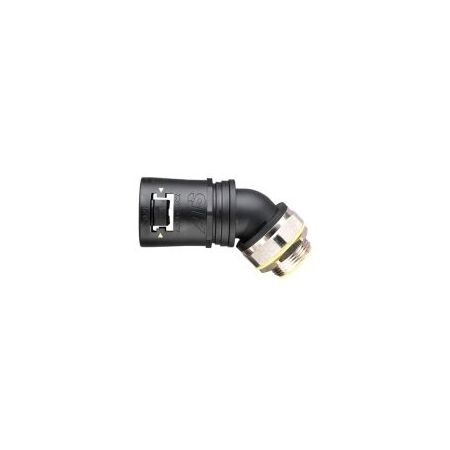

Adaptalok Swivel 45° Elbow 42mm M40 Black Adaptaflex
Adaptaflex Adaptalok 45 degree swivel elbow has 42mm conduit size, M40 nickel plated brass male thread and black nylon 66 body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AL42/M40/S45/BL, Adaptalok S45 conduit elbow, 45-degree swivel external male-thread conduit fitting
Technical Specifications
- Conduit Size: 42 mm nominal
- Thread Type: Metric external male thread
- Thread Size: M40 x 1.5
- Thread Length: 18 mm
- Connection: 45° swivel elbow
- Body Material: Polyamide (nylon) 66
- Thread Material: Nickel-plated brass
- Colour: Black
- Degree of Protection: IP66; IP67, IP68 and IP69 with ALS seal
- Compatible Conduit: PA, PR, PF and CP
- Operating Temperature: -50°C to +120°C static; -45°C to +120°C moving
- Installation: For threaded entries and knockouts; locknut ordered separately
- Approvals and Declarations: CE, NF, cRUus and RoHS listed in manufacturer catalogue
- Dimensions (H x L x W): 70mm x 95mm x 70mm
- Weight: 0.181 kg
Key Features
- 45° swivel elbow configuration for directional conduit routing
- External M40 metric male thread for entry into threaded panels and knockouts
- Black nylon 66 body with nickel-plated brass thread
- Designed for 42 mm nominal flexible conduit
- Suitable for Adaptaflex PA, PR, PF and CP conduit systems
- IP66 protection as standard; higher ingress protection available with ALS seal
- Snap connection for compatible corrugated conduit
- Suitable for static and moving applications across the specified temperature ranges
Professional Installation Requirements
- Installation should be carried out by a suitably qualified electrical installer where the fitting forms part of an electrical wiring or cable-management installation. Fit with the correct locknut and ALS seal where a higher IP rating is required.
Applications
- Electrical cable protection systems
- Control panels and switchboards
- Industrial machinery and automation equipment
- Flexible conduit routing through threaded entries and knockouts
- PA, PR, PF and CP conduit installations
Standards & Compliance
- AS/NZS 61386.23:2015 is the applicable Australian/New Zealand standard for flexible conduit systems; confirm project-specific certification, as the available product literature references DIN EN 61386-23 rather than stating AS/NZS certification.
Environmental Benefits
- RoHS-listed construction supports restriction of hazardous substances in the product
- Durable nylon 66 and nickel-plated brass construction can extend service life and reduce replacement waste
- Nylon and brass components are potentially recoverable through appropriate material-recycling streams
Warranty Information
ABB Australia standard sale conditions provide a 12-month warranty against defects in materials and workmanship, subject to correct handling, installation, use and maintenance and any applicable contract terms.
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and industrial distributors.
