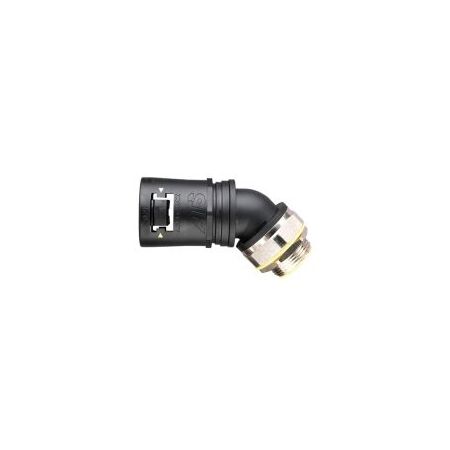

Adaptalok Swivel 45° Elbow 54mm M50 Black Adaptaflex
Adaptalok swivel 45 degree elbow features 54mm conduit size, M50 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex Adaptalok ATS 45° Elbow, Swivel External Male Thread Fitting, 54 mm Conduit Elbow
Technical Specifications
- Product Type: Adaptalok ATS swivel 45° elbow
- Nominal Conduit Size: 54 mm
- Thread: M50 x 1.5 male thread
- Thread Standard: Metric thread conforming to EN 60423 and BS 3643
- Body Material: Polyamide/Nylon 66
- Thread Material: Nickel-plated brass
- Seal Material: Thermoplastic elastomer (TPE)
- Colour: Black body with yellow elastomer
- Compatible Conduits: Type PA, PI, PR, PADL and PF
- Ingress Protection: IP66, IP67, IP68 up to 4 bar for 30 minutes, and IP69K with suitable conduit installation
- Operating Temperature: Static applications -50°C to +120°C; moving applications -45°C to +120°C
- Nominal Thread Outside Diameter: 50 mm
- Thread Pitch: 1.5 mm
- Dimensions (H x L x W): 66mm x 113mm x 84mm
- Weight: 0.1161 kg
Key Features
- 45° angled conduit connection for cable routing in confined spaces
- Swivel external male thread for insertion into threaded entries and knockouts
- Suitable for 54 mm nominal flexible conduit systems
- PA66 nylon body with nickel-plated brass male thread and TPE sealing element
- Designed for use with PA, PI, PR, PADL and PF conduit types
- High ingress protection when correctly assembled with compatible conduit and locknut
- Suitable for industrial, commercial, automation, machinery, rail, marine and infrastructure cable protection applications
Professional Installation Requirements
- Installation should be completed by a suitably qualified electrical or cable-management professional. Where used in an electrical installation, install in accordance with AS/NZS 3000 and the manufacturer's fitting instructions, using compatible conduit and the required locknut.
Applications
- Industrial cable protection systems
- Commercial and institutional electrical installations
- Automation and machinery control panels
- Rail, marine and transport infrastructure
- Power, energy and data-centre cable management
- Water, waste and process-industry equipment
Standards & Compliance
- AS/NZS 61386.23:2015, applicable to flexible conduit systems for cable management
- AS/NZS 3000:2018 may apply to the completed electrical installation
Environmental Benefits
- Durable PA66, TPE and nickel-plated brass construction can extend service life and reduce replacement waste
- Protects power and data cabling from mechanical and environmental damage, helping reduce premature cable replacement
- The fitting is part of a reusable conduit system that can support maintainable and upgradeable cable installations
Warranty Information
ABB Australia standard sale terms provide warranty coverage for defects occurring within 12 calendar months after delivery, subject to correct handling, installation, use and maintenance. Australian Consumer Law rights apply in addition.
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
