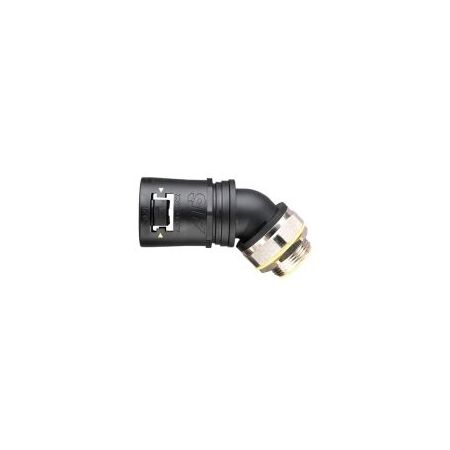

Adaptalok Swivel 45° Elbow 54mm M63 Black Adaptaflex

BRAND: CABAC
SKU: AT54/M63/S45/BLY
$171.90 List price: $229.20
+ −
30 Days Return Electricians Unlock Trade Access
Adaptaflex Adaptalok 45 degree swivel elbow has 54mm conduit size, M63 nickel plated brass male thread and black nylon 66 body. Ideal for PA, PR and PF conduit.

Alternatively Known As: Adaptalok ATS S45 swivel elbow, 54 mm conduit elbow, M63 male conduit fitting, nylon cable conduit elbow

Technical Specifications
  • Product Type: 45° elbow fitting with swivel external male thread
  • Nominal Conduit Size: 54 mm
  • Thread: M63 x 1.5 metric male thread
  • Thread Material: Nickel-plated brass
  • Body Material: Polyamide (nylon) 66
  • Seal Material: Thermoplastic elastomer (TPE)
  • Body Colour: Black
  • Compatible Conduit: Type PA, PR, PADL and PF
  • Ingress Protection: IP66 to IP69K
  • Operating Temperature, Static: -50°C to +120°C
  • Operating Temperature, Dynamic: -45°C to +120°C
  • Mechanical Classification: BS EN 61386-1 and BS EN 61386-23 classification ATS
  • Part Number: AT54/M63/S45/BLY
  • Dimensions (H x L x W): 116.1mm x 112.8mm x 84mm
  • Weight: 0.15 kg
Key Features
  • 45° angled swivel body for flexible conduit routing
  • Integrated sealing system for cable protection and system integrity
  • Nickel-plated brass male thread for robust panel or enclosure connection
  • Black nylon 66 body with high impact resistance
  • Suitable for PA, PR, PADL and PF conduit systems
  • IP66 rated as standard and up to IP69K with the specified sealing arrangement
  • Low-smoke, halogen-free construction
  • Metric M63 thread with 54 mm nominal conduit entry
Applications
  • Electrical cable management systems
  • Control panels and industrial enclosures
  • Automation and machinery wiring
  • Telcommunications and data cable protection
  • Industrial equipment requiring angled flexible conduit entry
Standards & Compliance
  • Relevant conduit-system standard framework: AS/NZS 61386.1
  • Relevant flexible conduit and fitting standard framework: AS/NZS 61386.23
Environmental Benefits
  • Halogen-free, low-smoke construction can reduce hazardous emissions in a fire
  • Durable nylon 66 and nickel-plated brass construction supports extended service life and reduces replacement waste
  • Brass components can be recovered through established metal recycling streams
  • Protects cables from mechanical damage, helping reduce premature cable replacement
Warranty Information

ABB Australia standard goods warranty: defects in materials and workmanship are generally covered for 12 calendar months after delivery, subject to the applicable ABB terms and conditions and Australian Consumer Law.

Available Now

Available through Adaptaflex/ABB channels and authorised Australian electrical distributors.
