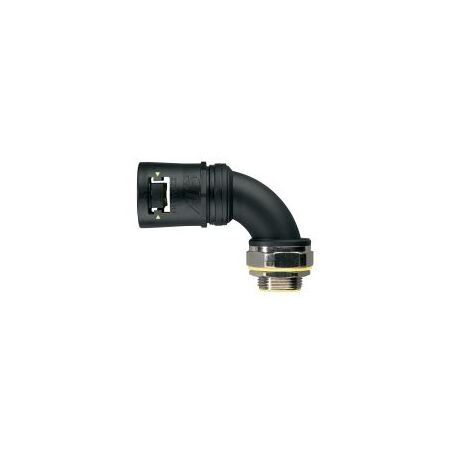

Adaptalok Swivel 90° Elbow 13mm M16 Black Adaptaflex

BRAND: CABAC
SKU: AT13/M16/CS90/BLY
$66.60 List price: $88.80
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok swivel 90 degree elbow features 13mm conduit size, M16 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.

Alternatively Known As: Adaptalok CS90 elbow fitting, 90-degree flexible conduit elbow, swivel external male thread conduit fitting

Technical Specifications
  • Product Type: 90° elbow fitting with swivel external male thread
  • Nominal Conduit Size: 13mm
  • Thread Size: M16 x 1.5
  • Thread Type: Metric male thread
  • Thread Material: Nickel-plated brass
  • Body Material: Polyamide nylon 66 with TPE sealing element
  • Ingress Protection: IP66 to IP69
  • Static Temperature Range: -50°C to +120°C
  • Moving Temperature Range: -45°C to +120°C
  • Compatible Conduit: Adaptaflex PA, PR and PF conduit
  • Installation Method: For threaded entries and knockouts; locknut ordered separately
  • Dimensions (H x L x W): 53.2mm x 45.4mm x 24mm
  • Weight: 0.1 kg
Key Features
  • Swivel 90° design simplifies conduit routing and connection
  • Suitable for 13mm flexible conduit systems
  • M16 x 1.5 nickel-plated brass male thread
  • Robust nylon 66 body with TPE sealing element
  • IP66-IP69 protection when correctly assembled with compatible conduit
  • Suitable for static and moving applications
  • Compatible with Adaptaflex PA, PR and PF conduit
Applications
  • Electrical control panels and enclosures
  • Industrial machinery cable protection
  • Automation and control wiring
  • Flexible conduit connections in commercial and industrial installations
  • Cable routing through threaded entries and knockouts
Standards & Compliance
  • AS/NZS 2053 series for conduits and fittings used in electrical installations
Environmental Benefits
  • Nickel-plated brass components can be recovered through metal recycling streams
  • Durable construction helps protect cables and extend the service life of the installation
  • Long service life can reduce replacement frequency and associated material waste
Warranty Information

ABB standard warranty coverage generally provides 12 months against defects in materials and workmanship, subject to correct handling, installation and use; Australian Consumer Law rights also apply.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
