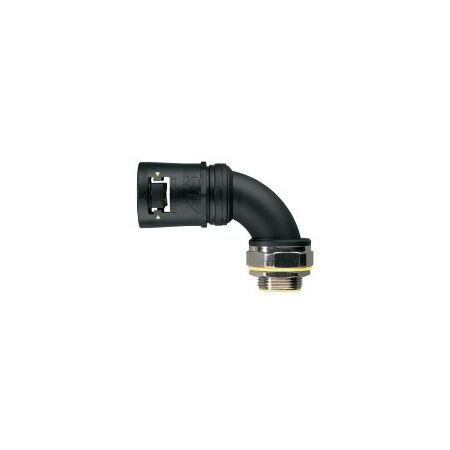

Adaptalok Swivel 90° Elbow 16mm M16 Black Adaptaflex

BRAND: CABAC
SKU: AT16/M16/CS90/BLY
$38.60 List price: $51.40
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok swivel 90 degree elbow features 16mm conduit size, M16 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.

Alternatively Known As: Adaptalok Type CS90 Elbow, 16mm Flexible Conduit Elbow, Swivel External Male Thread Elbow

Technical Specifications
  • Fitting Type: 90° elbow with swivel external male thread
  • Nominal Conduit Size: 16mm
  • Thread: M16 x 1.5 male metric thread
  • Thread Material: Nickel-plated brass
  • Body Material: Polyamide Nylon 66 with TPE components
  • Colour: Black
  • Ingress Protection: IP66 to IP69
  • Compatible Conduit: Type PA, PR, PF and CP conduit
  • Temperature Range, Static: -50°C to +120°C
  • Temperature Range, Moving: -45°C to +120°C
  • Thread Standard: EN 60423 and BS 3643
  • Product Classification: BS EN 61386-1 and BS EN 61386-23
  • Installation: For insertion into threaded entries or knockouts; locknut ordered separately
  • Dimensions (H x L x W): 55mm x 46mm x 23.8mm
  • Weight: 0.1 kg
Key Features
  • Swivel external male thread allows alignment during conduit installation
  • Provides a 90° change of direction for flexible conduit runs
  • Nickel-plated brass M16 thread for robust enclosure or panel connection
  • Polyamide Nylon 66 body provides durable, lightweight cable protection
  • IP66-IP69 protection when used with the appropriate compatible conduit system
  • Suitable for PA, PR, PF and CP flexible conduit systems
  • High and low temperature capability for static and moving applications
Professional Installation Requirements
  • Installation in fixed electrical wiring systems should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the applicable conduit-system requirements.
Applications
  • Termination of flexible conduit into electrical enclosures and control cabinets
  • Cable protection for machinery, automation and OEM equipment
  • Commercial and industrial electrical installations
  • Panel building, switchboard and control-system wiring
  • Cable routing in transport, marine, infrastructure and data-centre equipment
Standards & Compliance
  • Applicable conduit-system reference: AS/NZS 61386.23:2015 for flexible conduit systems
  • Installation should comply with AS/NZS 3000:2018 where used in electrical installations
Environmental Benefits
  • Durable Nylon 66 construction can support a long service life and reduce replacement waste
  • Lightweight polymer construction reduces material mass compared with many metal fitting alternatives
  • Cable protection helps extend the service life of enclosed wiring and reduce premature cable replacement
Warranty Information

ABB warranty coverage is generally 12 months from installation or 18 months from shipment, whichever occurs first, subject to applicable terms and conditions.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
