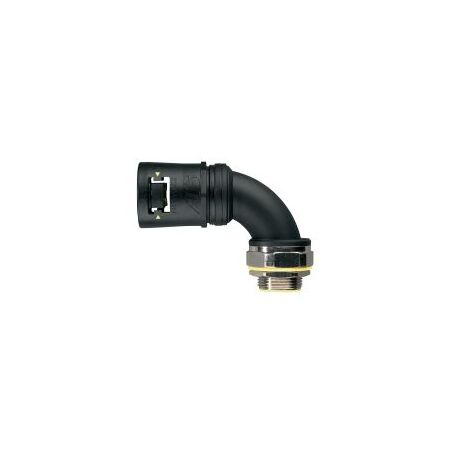

Adaptalok Swivel 90° Elbow 21mm M20 Black Adaptaflex
Adaptalok swivel 90 degree elbow features 21mm conduit size, M20 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex Adaptalok CS90 Elbow, 21 mm Conduit Elbow, M20 Swivel External Male Thread Fitting
Technical Specifications
- Conduit Size: 21 mm nominal
- Fitting Type: 90° swivel elbow
- Thread: M20 x 1.5 external male thread
- Thread Length: 11.2 mm
- Thread Material: Nickel-plated brass
- Body Material: Polyamide 66 nylon
- Sealing Material: TPE
- Colour: Black
- Ingress Protection: IP66 to IP69
- Static Operating Temperature: -50°C to +120°C
- Dynamic Operating Temperature: -45°C to +120°C
- Compatible Conduit: Adaptalok PA, PI, CP, PR and PF conduit
- Installation: Locknut required for mounting through threaded entries or knockouts; locknut supplied separately
- Dimensions (H x L x W): 56.9mm x 46.8mm x 29.1mm
- Weight: 0.1 kg
Key Features
- Swivel external male thread allows alignment during installation
- Compact 90° conduit routing for restricted spaces
- Durable PA66 nylon body with nickel-plated brass thread
- Suitable for a range of Adaptaflex non-metallic conduit systems
- IP66 to IP69 protection when used with compatible conduit and sealing accessories
- Black finish for standard cable-management installations
Applications
- Electrical cable protection systems
- Control panels and industrial enclosures
- Machine tools and factory automation equipment
- Building services and commercial electrical installations
- Routing flexible conduit through threaded entries and knockouts
Standards & Compliance
- AS/NZS 2053 series – applicable Australian/New Zealand requirements for conduits and fittings; verify the specific installation and product certification.
Environmental Benefits
- Durable PA66 construction supports extended service life and can reduce replacement waste
- Nickel-plated brass components are recyclable at end of service life
- Lightweight non-metallic construction can reduce material use and handling impacts compared with heavier metallic fittings
Warranty Information
Warranty against manufacturing defects is subject to ABB/Adaptaflex warranty terms and applicable Australian Consumer Law; confirm the applicable warranty period with the authorised distributor.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
