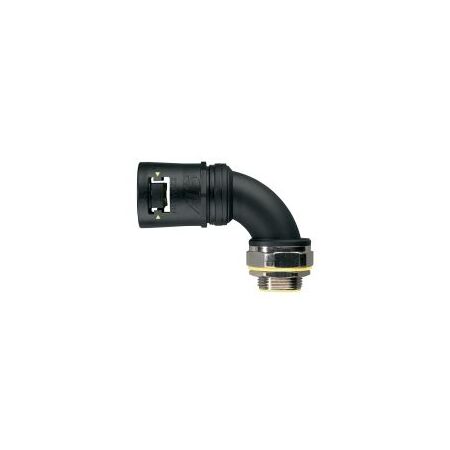

Adaptalok Swivel 90° Elbow 34mm M32 Black Adaptaflex

BRAND: CABAC
SKU: AT34/M32/CS90/BLY
$120.10 List price: $160.20
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok swivel 90 degree elbow features 34mm conduit size, M32 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.

Alternatively Known As: Adaptalok CS90 swivel elbow, 34 mm conduit elbow, M32 male-thread conduit fitting

Technical Specifications
  • Fitting Type: 90° elbow with swivel external male thread
  • Nominal Conduit Size: 34 mm
  • Thread: M32 x 1.5 male metric thread
  • Body Material: Polyamide (nylon) 66
  • Thread Material: Nickel-plated brass
  • Seal Material: TPE
  • Colour: Black body
  • Ingress Protection: IP66 as standard; IP67, IP68 and IP69K when fitted with ALS seal
  • Operating Temperature: -50°C to +120°C static; -45°C to +120°C dynamic
  • Compatible Conduit: Adaptaflex PA, PR, PADL and PF conduit systems
  • Fire Performance: Self-extinguishing and low smoke, halogen-free
  • Mechanical Classification: BS EN 61386 tested; impact class 4
  • Dimensions (H x L x W): 74.2mm x 68.8mm x 43.2mm
  • Weight: 0.112 kg
Key Features
  • Swivel 90° elbow design assists conduit alignment during installation
  • M32 x 1.5 external male thread for threaded entries and knockouts
  • Nylon 66 body with nickel-plated brass thread and TPE sealing components
  • Suitable for 34 mm PA, PR, PADL and PF flexible conduit
  • IP66 protection as standard with higher IP ratings available using an ALS seal
  • High impact resistance and wide operating temperature range
  • Low smoke and halogen-free construction
  • Supplied as a passive cable-management fitting
Applications
  • Electrical cable protection systems
  • Industrial automation and machinery wiring
  • Commercial building services and equipment wiring
  • Data centre and telecommunications cable management
  • Control panels, enclosures and equipment requiring flexible conduit entry
  • Installations exposed to dust, water spray or washdown conditions when correctly sealed
Standards & Compliance
  • AS/NZS 61386.1:2015 is the applicable general requirements standard for conduit systems for cable management
  • AS/NZS 61386.23:2015 is the applicable particular requirements standard for flexible conduit systems
  • Manufacturer documentation cites BS EN 61386 and IEC 61386 testing; confirm project-specific certification requirements before installation
Environmental Benefits
  • Polyamide 66 and nickel-plated brass components can be separated for recycling where local facilities accept these materials
  • Low smoke and halogen-free construction can reduce hazardous combustion emissions
  • Durable materials and broad temperature performance can extend service life and reduce replacement waste
  • Suitable for cable-protection systems that help preserve and extend the working life of installed cabling
Warranty Information

ABB Australia standard conditions provide a 12-month warranty against defects in title, materials and workmanship, subject to the applicable terms, exclusions and Australian Consumer Law.

Available Now

Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
