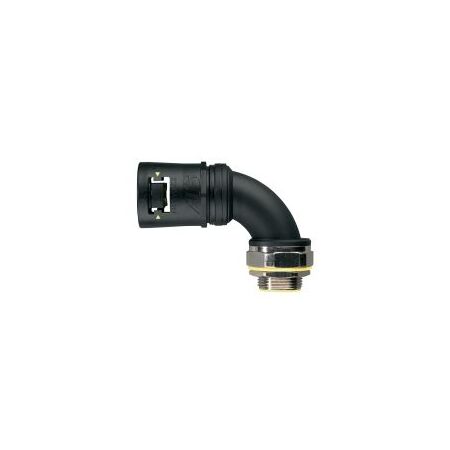

Adaptalok Swivel 90° Elbow 42mm M40 Black Adaptaflex
Adaptalok swivel 90 degree elbow features 42mm conduit size, M40 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AL42/M40/CS90/BL, Adaptaflex 90 Degree Swivel Conduit Fitting, Nylon 66 Conduit Elbow
Technical Specifications
- Product Type: Adaptalok Type CS90 90° elbow fitting
- Nominal Conduit Size: 42mm
- Thread Size: M40 x 1.5 external male thread
- Thread Length: 18mm
- Thread Type: Metric
- Body Material: Polyamide nylon 66
- Thread Material: Nickel-plated brass
- Seal Material: TPE
- Colour: Black
- Ingress Protection: IP66 to IP69
- Compatible Conduit: PA, PR, PADL and PF
- Temperature Range: -50°C to +120°C static; -45°C to +120°C moving
- Pressure Rating: IP68 up to 4 bar for 30 minutes with heavy-weight conduit; 2 bar for 30 minutes with standard-weight conduit
- Installation: Push-on conduit connection with swivel external male thread
- Environmental Compliance: RoHS compliant
- Dimensions (H x L x W): 92.5mm x 85.8mm x 54mm
- Weight: 0.15 kg
Key Features
- 90° elbow configuration for routing flexible conduit
- Swivel external male M40 thread simplifies alignment during installation
- Suitable for 42mm PA, PR, PADL and PF non-metallic conduit
- Nylon 66 body with nickel-plated brass threaded section
- IP66 to IP69 protection when used with compatible conduit and sealing components
- High UV protection for demanding cable-management applications
- Metric thread version supplied with a locknut
- Suitable for static and moving applications
Applications
- Industrial machinery and automation equipment
- Electrical control panels and enclosures
- Power and data cable protection
- Machine building and panel construction
- Cable routing in industrial, infrastructure and equipment installations
Environmental Benefits
- RoHS-compliant construction helps limit restricted hazardous substances
- Durable nylon 66 and nickel-plated brass construction can extend service life and reduce replacement waste
- Non-metallic body and brass components can be separated for material recovery where local recycling facilities accept them
Warranty Information
ABB/Adaptaflex warranty terms apply; a specific warranty period for this fitting was not published. Confirm warranty coverage with the authorised distributor at purchase.
Available Now
Available through ABB/Adaptaflex and authorised Australian electrical and cable-management distributors.
