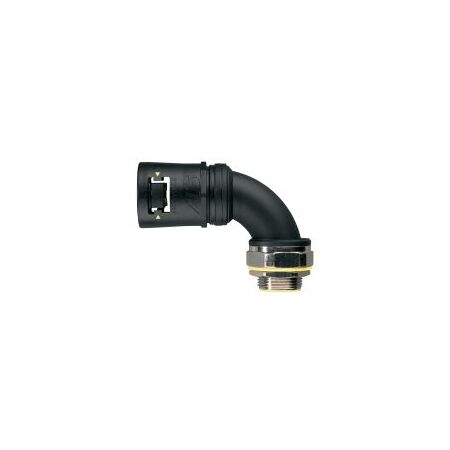

Adaptalok Swivel 90° Elbow 54mm M50 Black Adaptaflex
Adaptalok swivel 90 degree elbow features 54mm conduit size, M50 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AL54/M50/CS90/BL; Adaptalok CS90 swivel elbow; 54mm conduit elbow fitting
Technical Specifications
- Product Type: Type CS90 90° elbow fitting with swivel external male thread
- Part Number: AL54/M50/CS90/BL
- Nominal Conduit Size: 54mm
- Thread: M50 x 1.5 male metric thread
- Thread Material: Nickel-plated brass
- Body Material: Polyamide (nylon) 66 with TPE sealing component
- Colour: Black
- Ingress Protection: IP66 to IP69K, subject to the correct conduit and sealing arrangement
- Compatible Conduit: Type PA, PR and PF
- Temperature Range, Static Applications: -50°C to +120°C
- Temperature Range, Moving Applications: -45°C to +120°C
- Installation: For threaded entries and knockouts; locknut ordered separately
- Dimensions (H x L x W): 70mm x 115mm x 66.8mm
- Weight: 0.293 kg
Key Features
- Swivel 90° elbow design allows alignment after conduit installation
- Suitable for 54mm nominal flexible conduit
- Nickel-plated brass M50 external male thread
- Nylon 66 and TPE construction for demanding cable-protection applications
- Designed for use with Adaptaflex PA, PR and PF conduit systems
- High ingress protection from IP66 to IP69K when correctly assembled
- Suitable for static and moving applications across a wide temperature range
- Manufacturer dimensional data lists a nominal weight of 293g per fitting
Applications
- Cable protection in electrical installations
- Industrial machinery and control-panel wiring
- Automation, robotics and moving cable applications
- Vehicle, transport and infrastructure cable management
- Outdoor and washdown environments requiring high ingress protection
Standards & Compliance
- AS/NZS 61386.1:2015 is the applicable general requirements standard for conduit systems and fittings; AS/NZS 61386.23:2015 covers flexible conduit systems. The manufacturer information located does not state specific AS/NZS certification for this fitting. ([store.accuristech.com](https://store.accuristech.com/pip/products/preview/2055881?utm_source=openai))
Environmental Benefits
- Durable nylon 66 and nickel-plated brass construction can support an extended service life and reduce replacement waste
- The brass and metal components are recyclable at end of service through appropriate metal-recycling streams
- Provides mechanical and environmental protection for cables, helping reduce premature cable replacement
Warranty Information
ABB Australia standard sale conditions provide a 12-month warranty period for defects, subject to the stated handling, installation and notification conditions; confirm purchase-specific coverage with the authorised distributor. ([new.abb.com](https://new.abb.com/docs/librariesprovider70/terms-and-conditions/standard-conditions-for-sale-february-2023.pdf?sfvrsn=c5c4920a_2&utm_source=openai))
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
