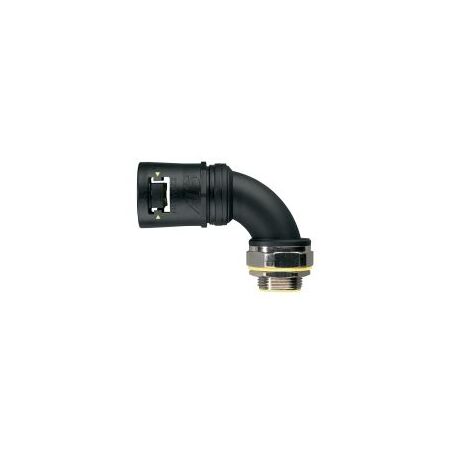

Adaptalok Swivel 90° Elbow 54mm M63 Black Adaptaflex
Adaptalok swivel 90 degree elbow features 54mm conduit size, M63 nickel brass male thread, IP66-IP69 rating and nylon 66 TPE body. Ideal for PA, PR and PF conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok ATS 90° Swivel Elbow, Adaptaflex CS90 Conduit Fitting, 54 mm M63 Swivel Male Conduit Elbow
Technical Specifications
- Product Type: Adaptalok ATS CS90 90° swivel elbow fitting
- Nominal Conduit Size: 54 mm
- Thread: M63 x 1.5 external male thread
- Thread Length: 16 mm
- Material: Polyamide (nylon) 66 body, nickel-plated brass thread and TPE seal
- Colour: Black body with yellow elastomer
- Ingress Protection: IP66, IP67, IP68 and IP69K
- Temperature Range, Static: -50°C to +120°C
- Temperature Range, Dynamic: -45°C to +120°C
- Compatible Conduit: Type PA, PR, PADL and PF
- Connection Method: Snap connection with integrated seal system
- Installation: For threaded entries and knockouts using a locknut
- Mechanical Classification: Compression 4, impact 2, minimum temperature 4, electrical 0, solids IP6, water IP7
- Dimensions (H x L x W): 127.6mm x 110.7mm x 70.0mm
- Weight: 0.318 kg
Key Features
- 90° elbow configuration with swivel external male thread
- Suitable for 54 mm flexible conduit systems
- M63 x 1.5 metric thread for panel and enclosure entry
- Nylon 66 body with nickel-plated brass thread and TPE sealing element
- IP66 to IP69K protection when correctly assembled with compatible conduit
- High impact resistance and very high UV resistance
- Suitable for static and moving cable-protection applications
- Locknut supplied for metric-thread versions
Professional Installation Requirements
- Installation should be completed by a suitably qualified electrical or cable-management professional. Select compatible conduit, locknut and sealing components, and install in accordance with the applicable wiring and conduit-system requirements.
Applications
- Industrial machinery and automation cable protection
- Electrical control panels and enclosures
- Commercial and infrastructure electrical installations
- Rail, marine, transport and OEM cable-management systems
- Power, data and communications cable protection in demanding environments
Standards & Compliance
- AS/NZS 61386.1:2015 is the relevant Australian/New Zealand general conduit-system standard for this product category; verify project-specific certification before installation
- Manufacturer datasheet states compliance with BS EN 61386-1 and BS EN 61386-23 and cites IEC 61386 testing classifications
Environmental Benefits
- Corrosion-free nylon construction can extend service life in damp or chemically challenging environments
- Lightweight construction can reduce handling and transport impacts compared with equivalent metallic fittings
- Durable UV-resistant materials and high impact resistance can reduce replacement frequency and installation waste
- Nickel-plated brass and other material components may be recoverable through appropriate industrial recycling streams
Warranty Information
ABB publishes limited warranty terms for Installation Products, including a two-year limited warranty for certain North American products. Australian warranty coverage and conditions should be confirmed with the authorised distributor at purchase.
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
