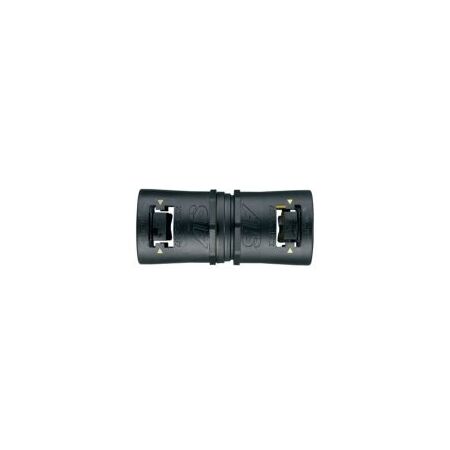

Adaptalok Swivel Coupler 13mm Conduit Black Adaptaflex

BRAND: CABAC
SKU: AT13/A/U/BLY
$62.60 List price: $83.40
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok swivel coupler features 13mm conduit size, straight body, face seal and nylon 66 TPE body in black. Ideal for joining two flexible conduit lengths.

Alternatively Known As: 13mm Flexible Conduit Coupler, Adaptalok Swivel Coupler, Nylon 66 Conduit Joiner

Technical Specifications
  • Part Number: AL13/A/U/BL
  • Nominal Conduit Size: 13mm
  • Fitting Type: Straight swivel coupler
  • Material: Polyamide Nylon 66 with aluminium components and TPE sealing elements
  • Colour: Black
  • Compatible Conduits: PA, PI, CP, PR, PADL and PF corrugated flexible conduits
  • Ingress Protection: IP66 standard; IP67, IP68 and IP69K with ALS seal
  • Operating Temperature: Static -50°C to +120°C; dynamic -45°C to +120°C
  • Mechanical Protection: High impact resistance
  • Fire Performance: Self-extinguishing, UL94 V2
  • Environmental Performance: Halogen-free and low smoke
  • Approvals: BSI Kitemark KM-35161 and Lloyd’s Register type approval
  • Manufacturer Classification: BS EN 61386-1 and BS EN 61386-23 approved
  • Ultimate Pull-out Strength: 240N when tested with PAFS21 conduit
  • Dimensions (H x L x W): 21.3mm x 80mm x 21.3mm
  • Weight: 0.1 kg
Key Features
  • Joins two 13mm corrugated flexible conduit lengths
  • Swivel design helps accommodate conduit movement and alignment
  • Straight body with integrated conduit sealing arrangement
  • Black Nylon 66 body with aluminium components
  • High impact resistance for industrial cable protection applications
  • Very high UV resistance
  • Suitable for static and dynamic installations
  • IP66 protection as standard, up to IP69K when fitted with ALS seal
  • Self-extinguishing, halogen-free and low-smoke construction
Professional Installation Requirements
  • Installation should be completed by a suitably qualified electrical tradesperson where used in an electrical installation, in accordance with AS/NZS 3000 and the relevant conduit-system requirements.
Applications
  • Joining flexible conduit runs in electrical installations
  • Cable protection for industrial machinery and automation equipment
  • Commercial, institutional and infrastructure cable management
  • Rail, marine, automotive and transport equipment
  • Power, energy, ICT and data-centre cable protection systems
Standards & Compliance
  • Applicable conduit-system standards include AS/NZS 61386.1 and AS/NZS 61386.23; the manufacturer’s datasheet cites approval to the corresponding BS EN 61386-1 and BS EN 61386-23 requirements.
  • Electrical installations incorporating the fitting should be designed and installed in accordance with AS/NZS 3000.
Environmental Benefits
  • Halogen-free and low-smoke construction can reduce hazardous emissions during fire conditions.
  • Self-extinguishing material helps limit flame propagation.
  • Durable Nylon 66 and aluminium construction can extend service life and reduce replacement waste.
  • Aluminium components are recyclable at end of service life.
Warranty Information

ABB standard commercial warranty is generally 12 months from commissioning, subject to a maximum of 18 months from delivery, unless alternative contractual terms apply. Australian consumer guarantees may also apply.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
