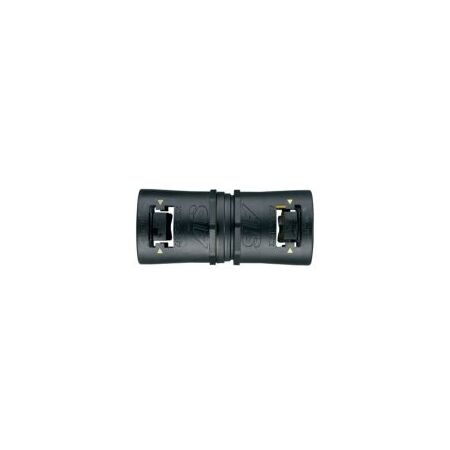

Adaptalok Swivel Coupler 28mm Conduit Black Adaptaflex
Adaptalok swivel coupler features 28mm conduit size, straight body, face seal and nylon 66 TPE body in black. Ideal for joining two flexible conduit lengths.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 28mm Flexible Conduit Coupler, Adaptalok ATS Swivel Coupler, PA66 Conduit Coupling
Technical Specifications
- Nominal Conduit Size: 28 mm
- Coupling Type: Straight body swivel coupler
- Material: Polyamide (nylon) 66 with TPE elastomer
- Colour: Black body; elastomer colour varies by configuration
- Outside Diameter: 37.2 mm
- Length: 86.5 mm
- Installation Type: Self-lock
- Ingress Protection: IP66 to IP69, configuration dependent
- Temperature Range, Static Applications: -50°C to +120°C
- Temperature Range, Moving Applications: -45°C to +120°C
- Compatible Conduit Types: Adaptaflex PA, PR, PADL and PF
- Application: Coupling two corrugated flexible conduits
- Compliance Information: RoHS3, REACH, TSCA and POPs compliant configurations available
- Dimensions (H x L x W): 37.2mm x 86.5mm x 37.2mm
- Weight: 0.1 kg
Key Features
- Straight-body swivel design for joining two flexible conduit lengths
- 28 mm nominal conduit size
- Polyamide nylon 66 and TPE construction
- Integral face seal helps maintain conduit system integrity
- Self-locking installation
- High UV protection
- Suitable for static and moving cable-protection applications
- IP66–IP69 protection rating depending on conduit and elastomer configuration
Professional Installation Requirements
- Installation should be carried out by a suitably qualified electrical installer in accordance with the cable-management system manufacturer's instructions and applicable Australian electrical installation requirements.
Applications
- Joining corrugated flexible conduit in electrical installations
- Protecting power, control, instrumentation and data cables
- Commercial, industrial, OEM, infrastructure and machinery wiring systems
- Cable protection in environments exposed to vibration, dust, moisture and UV radiation
Standards & Compliance
- AS/NZS 61386.23:2015 – Conduit systems for cable management, particular requirements for flexible conduit systems; confirm product-specific certification and installation requirements with the distributor.
Environmental Benefits
- Long service life can reduce replacement frequency and installation waste
- Non-metallic construction does not corrode and supports use in corrosive environments
- RoHS and REACH-compliant configurations support restriction of hazardous substances
- Lightweight construction can reduce transport and handling impacts compared with metallic fittings
Warranty Information
ABB/Adaptaflex warranty terms are dependent on the sales channel and applicable regional conditions. No fixed product warranty period was located; confirm coverage with the authorised Australian distributor.
Available Now
Available through ABB/Adaptaflex and authorised Australian electrical and cable-management distributors.
