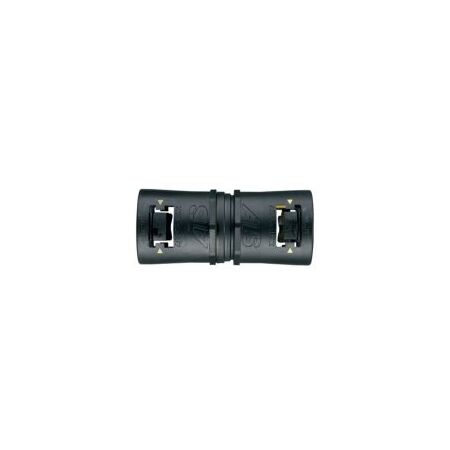

Adaptalok Swivel Coupler 42mm Conduit Black Adaptaflex

BRAND: CABAC
SKU: AT42/A/U/BLY
$19.00 List price: $25.30
+ −
30 Days Return Electricians Unlock Trade Access
Adaptalok swivel coupler features 42mm conduit size, straight body, face seal and nylon 66 TPE body in black. Ideal for joining two flexible conduit lengths.

Alternatively Known As: Adaptalok AL42/A/U/BL Swivel Coupler, 42 mm Flexible Conduit Coupler, Nylon 66 Conduit Connector

Technical Specifications
  • Manufacturer Part Number: AL42/A/U/BL
  • Nominal Conduit Size: 42 mm
  • Material: Polyamide (Nylon) 66 and aluminium
  • Colour: Black
  • Coupler Type: Straight swivel coupler
  • Ingress Protection: IP66 as standard; up to IP69K with ALS seal
  • Operating Temperature, Static: -50°C to +120°C
  • Operating Temperature, Dynamic: -45°C to +120°C
  • Conduit Compatibility: Type PA, PI, CP, PR, PADL and PF corrugated flexible conduits
  • Mechanical Classification: BS EN 61386-1 and BS EN 61386-23 approved
  • Flammability: UL94 V2; self-extinguishing
  • Tensile Strength: 240 N ultimate pull-out value
  • Halogen Free: Pass
  • Dimensions (H x L x W): 53.8mm x 116.2mm x 53.8mm
  • Weight: 0.1 kg
Key Features
  • Joins two corrugated flexible conduit lengths
  • Straight swivel design accommodates movement and reduces conduit torsion
  • Nylon 66 body with aluminium coupling components
  • Black finish for standard product identification
  • IP66 protection as standard with the supplied ALS seal arrangement
  • High impact resistance and high UV protection
  • Suitable for static and dynamic cable protection applications
  • Designed for use with multiple Adaptaflex conduit series
Applications
  • Joining flexible conduit sections in industrial electrical installations
  • Cable protection for machinery and factory automation equipment
  • Commercial building, control panel and equipment wiring
  • Rail, marine, data centre and general industrial cable management
Standards & Compliance
  • AS/NZS 61386.23:2015 is the applicable Australian/New Zealand standard for flexible conduit systems; the manufacturer datasheet cites the corresponding BS EN 61386-23 requirements.
Environmental Benefits
  • Non-metallic nylon construction is corrosion-resistant and can support a long service life in demanding environments
  • Lightweight construction can reduce handling and transport impacts compared with equivalent metallic fittings
  • Durable, impact-resistant construction may reduce replacement frequency and associated material waste
  • Aluminium components are recyclable at end of service life
Warranty Information

Specific warranty duration was not published in the available Adaptaflex product documentation; warranty is subject to ABB standard commercial terms and distributor conditions.

Available Now

Available through ABB/Adaptaflex and authorised Australian distributors, subject to distributor stock.
