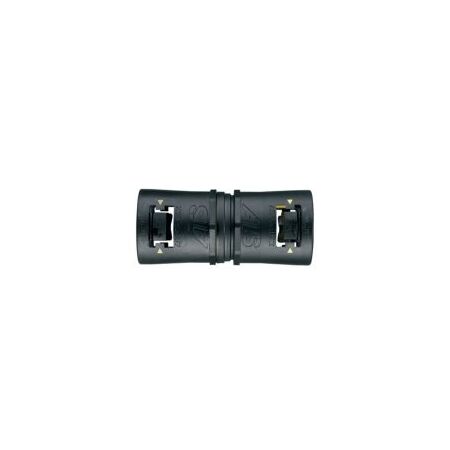

Adaptalok Swivel Coupler 54mm Conduit Black Adaptaflex
Adaptalok swivel coupler features 54mm conduit size, straight body, face seal and nylon 66 TPE body in black. Ideal for joining two flexible conduit lengths.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok 54mm Straight Swivel Coupler, Flexible Conduit Coupler, Nylon Conduit Joiner
Technical Specifications
- Part Number: AL54/A/U/BL
- Nominal Conduit Size: 54mm
- Fitting Type: Straight swivel coupler
- Material: Polyamide (nylon) 66 with metal coupling components
- 54mm Coupler Material: Nickel-plated brass
- Colour: Black
- Compatible Conduit: Type PA, PI, CP, PR, PADL and PF flexible conduits
- Ingress Protection: IP66 as standard; IP67, IP68 and IP69K with ALS seal
- Operating Temperature, Static: -50°C to +120°C
- Operating Temperature, Dynamic: -45°C to +120°C
- Mechanical Classification: BS EN 61386-1 and BS EN 61386-23 approved
- Fire Performance: Self-extinguishing, UL94 V-2
- UV Protection: Very high
- Halogen Status: Halogen-free
- Nominal Dimensions: A 132mm x B 66.8mm
- Weight: 170g each
- Dimensions (H x L x W): 66.8mm x 132mm x 66.8mm
- Weight: 0.17 kg
Key Features
- Joins two 54mm corrugated flexible conduits
- Straight body with swivel coupling action
- Designed to maintain cable protection system integrity
- High impact resistance for industrial cable management applications
- IP66 protection as standard
- Can achieve IP67, IP68 and IP69K protection when fitted with an ALS seal
- Suitable for static and moving applications
- Wide operating temperature range
- Black finish for consistent system appearance
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical professional in accordance with the applicable wiring rules, conduit manufacturer instructions and project requirements. Ensure compatible conduit and any required ALS seal are correctly fitted to achieve the intended IP rating.
Applications
- Joining flexible conduit sections in industrial electrical installations
- Cable protection systems for machinery and automation equipment
- Commercial and industrial wiring installations
- Rail, infrastructure, energy and transport applications
- Applications requiring flexible conduit movement or vibration tolerance
Standards & Compliance
- AS/NZS 61386.23:2015 — applicable standard for flexible conduit systems; verify product certification and project requirements before installation
- AS/NZS 3000 — applicable electrical installation requirements for conduit systems
Environmental Benefits
- Durable nylon and metal construction can extend service life and reduce replacement waste
- Aluminium and brass components are recyclable at end of service life
- Halogen-free construction can reduce corrosive and toxic emissions during fire conditions
Warranty Information
No product-specific Adaptaflex warranty period was identified. Warranty is subject to ABB/Adaptaflex terms, the supplier's conditions and applicable Australian Consumer Law rights.
Available Now
Available through Adaptaflex/ABB and authorised Australian electrical and industrial distributors.
