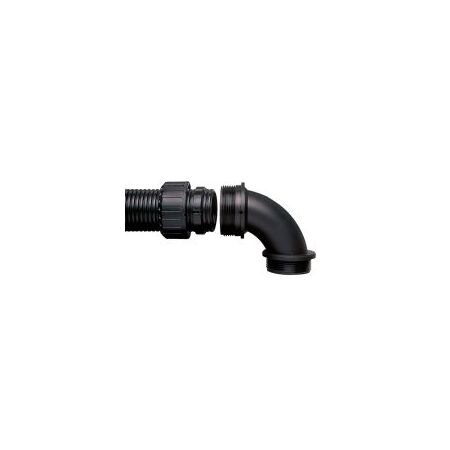

Adaptaseal 90 Degree Elbow 10mm Conduit M16 Male Black Adaptaflex

BRAND: CABAC
SKU: ASF10/M16/C90/BL
$17.90 List price: $23.90
+ −
30 Days Return Electricians Unlock Trade Access
Adaptaseal 90 degree elbow features 10mm conduit size, fixed M16 male thread and nylon 66 body in black. Ideal for connecting flexible conduit to threaded entries.

Alternatively Known As: Adaptaflex Type C90 Adaptaseal Elbow, Nylon 66 Conduit Elbow, 10mm Flexible Conduit Fitting

Technical Specifications
  • Fitting Type: Type C90 90° elbow
  • Nominal Conduit Size: 10mm
  • Thread Type: Fixed external M16 male thread
  • Material: Polyamide Nylon 66
  • Colour: Black
  • Ingress Protection: IP66, IP67, IP68 and IP69K when used with compatible conduit and sealing arrangement
  • IP68 Rating: 2 bar for 30 minutes
  • Temperature Range, Static Applications: -40°C to +120°C
  • Temperature Range, Moving Applications: -5°C to +120°C
  • Compatible Conduit: Adaptaflex Type PA, CP, PR and PF
  • Locknut: Supplied for metric-thread version
  • Product Reference: ASF10/M16/C90/BL
  • Dimensions (H x L x W): 38mm x 38mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Provides a 90° change of direction for flexible conduit runs
  • Fixed external M16 male thread for installation into threaded entries and knockouts
  • Manufactured from durable Nylon 66 polyamide
  • Black finish for discreet electrical and industrial installations
  • Suitable for weather-resistant conduit assemblies when correctly sealed
  • Supplied with a metric-thread locknut
Applications
  • Electrical cable protection systems
  • Control panel and enclosure cable entries
  • Industrial machinery wiring
  • Automation and instrumentation installations
  • Flexible conduit connections through knockouts and threaded entries
Standards & Compliance
  • Relevant flexible conduit system reference: AS/NZS 61386.23
  • Electrical installation work should be carried out in accordance with AS/NZS 3000
Environmental Benefits
  • Durable Nylon 66 construction can provide a long service life and reduce replacement waste
  • Lightweight non-metallic construction reduces material use and transport weight compared with equivalent metal fittings
  • Polyamide components may be recoverable through appropriate plastics recycling streams where local facilities accept them
Warranty Information

ABB Australia standard warranty provides coverage for defects in materials and workmanship for 12 calendar months from delivery, subject to the applicable terms and conditions.

Available Now

Available through authorised ADAPTAFLEX distributors in Australia.
