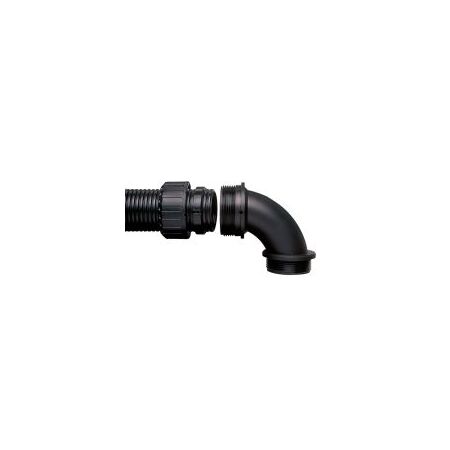

Adaptaseal 90 Degree Elbow 13mm Conduit M16 Male Black Adaptaflex
Adaptaseal 90 degree elbow features 13mm conduit size, fixed M16 male thread and nylon 66 body in black. Ideal for connecting flexible conduit to threaded entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaseal C90 Elbow Fitting, Nylon 66 Conduit Elbow, Fixed External Male Thread Elbow
Technical Specifications
- Product Type: Type C90 Adaptaseal 90° elbow fitting
- Part Number: ASF13/M16/C90/BL
- Nominal Conduit Size: 13mm
- Thread Type: Fixed external M16 male thread
- Material: Polyamide Nylon 66
- Colour: Black
- Ingress Protection: IP66 to IP69
- Static Temperature Range: -40°C to +120°C
- Moving Temperature Range: -5°C to +120°C
- Compatible Conduit: Adaptaflex Type PA, CP, PR and PF
- Locknut: Supplied for metric-thread versions
- Dimensions (H x L x W): 28mm x 38mm x 22mm
- Weight: 0.1 kg
Key Features
- 90-degree elbow configuration for neat conduit routing
- Fixed external M16 male thread for threaded entries and knockouts
- Nylon 66 construction with low-fire-hazard properties
- IP66 to IP69 protection when correctly assembled with compatible conduit
- Suitable for a range of Adaptaflex flexible non-metallic conduits
- Metric locknut supplied
Applications
- Electrical control panels and enclosures
- Automation and machinery wiring protection
- Commercial and industrial cable management
- Power, energy, ICT and data-centre installations
- Connecting 13mm flexible conduit to threaded entries or knockout panels
Standards & Compliance
- Relevant standard reference: AS/NZS 61386.23:2015 for flexible conduit systems
- Installation should be carried out in accordance with AS/NZS 3000 where used in an electrical installation
Environmental Benefits
- Lightweight Nylon 66 construction can reduce material and transport weight compared with metal alternatives
- Durable polyamide construction supports extended service life and can reduce replacement waste
- Suitable for reusable conduit systems, helping minimise repeated cable-protection material consumption
Warranty Information
ABB warranty coverage is subject to the applicable sales terms. ABB standard equipment warranty terms generally provide coverage for 12 months after installation or 18 months after shipment, whichever occurs first; confirm eligibility with the authorised distributor.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
