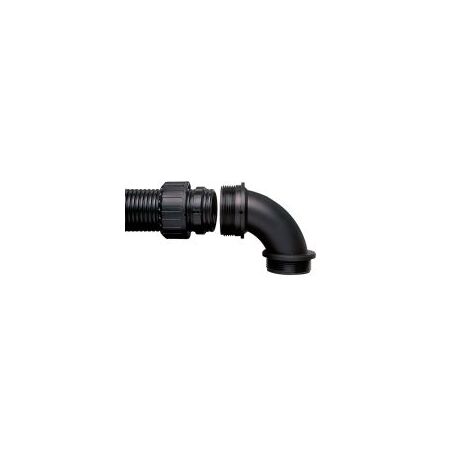

Adaptaseal 90 Degree Elbow 16mm Conduit M20 Male Black Adaptaflex
Adaptaseal 90 degree elbow features 16mm conduit size, fixed M20 male thread and nylon 66 body in black. Ideal for connecting flexible conduit to threaded entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex C90 Elbow, Adaptaseal Conduit Elbow, Nylon 66 Conduit Fitting
Technical Specifications
- Manufacturer Part Number: ASF16/M20/C90/BL
- Fitting Type: 90° elbow with fixed external male thread
- Nominal Conduit Size: 16 mm
- Thread Size: M20 x 1.5
- Thread Type: Metric external male thread
- Material: Polyamide nylon 66 body with TPV seal
- Colour: Black
- Degree of Protection: IP66, IP67, IP68 and IP69K
- IP68 Rating: 2 bar for 30 minutes
- Temperature Range: -50°C to +120°C static; -45°C to +120°C dynamic
- Locknut: Supplied with metric-thread versions
- Fire Performance: Self-extinguishing and halogen-free
- Mechanical Classification: BS EN 61386-1 and BS EN 61386-23 approved
- Dimensions (H x L x W): 26mm x 26.7mm x 26.7mm
- Weight: 0.1 kg
Key Features
- Provides a 90° change of direction for flexible conduit runs
- Fixed M20 male thread for connection to threaded entries or enclosure knockouts
- Durable polyamide nylon 66 construction
- Compression sealing system helps maintain conduit system integrity
- Suitable for Adaptaflex PA, CP, PR and PF conduit series
- High environmental protection from IP66 through to IP69K
- Metric locknut supplied
Applications
- Electrical cable protection systems
- Industrial control panels and enclosures
- Machinery and automation wiring
- Flexible conduit connections through threaded entries or knockouts
- Commercial and infrastructure cable management installations
Standards & Compliance
- AS/NZS 61386.1 for general requirements for conduit systems for cable management
- AS/NZS 61386.23 for flexible conduit systems
Environmental Benefits
- Halogen-free construction helps reduce hazardous halogenated emissions during fire conditions
- Durable nylon 66 construction can extend service life and reduce replacement waste
- Lightweight non-metallic construction reduces material use and handling weight
Warranty Information
12-month warranty against defects in design, materials and workmanship, subject to proper handling, installation, use and storage. Australian Consumer Law rights apply where applicable.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
