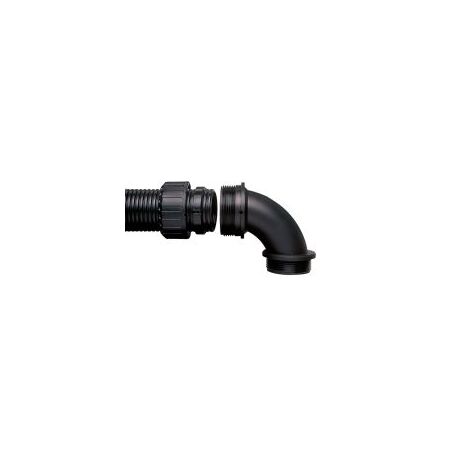

Adaptaseal 90 Degree Elbow 28mm Conduit M25 Male Black Adaptaflex
Adaptaseal 90 degree elbow features 28mm conduit size, fixed M25 male thread and nylon 66 body in black. Ideal for connecting flexible conduit to threaded entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaseal Type C90 elbow, 28 mm conduit elbow, nylon conduit fitting, ASF28/M25/C90/BL
Technical Specifications
- Fitting Type: Type C90 90-degree elbow
- Nominal Conduit Size: 28 mm
- Thread: M25 metric external male thread
- Thread Pitch: M25 x 1.5
- Thread Type: Fixed external male thread
- Material: Polyamide nylon 66
- Colour: Black
- Ingress Protection: IP66 to IP69K when used with suitable conduit and sealing accessories
- Temperature Range, Static Applications: -40°C to +120°C
- Temperature Range, Moving Applications: -5°C to +120°C
- Included Accessory: Metric locknut supplied
- Dimensions (H x L x W): 70mm x 70mm x 42mm
- Weight: 0.1 kg
Key Features
- 90-degree conduit entry for routing flexible conduit around corners
- Fixed M25 male thread for threaded entries and knockout panels
- Suitable for Adaptaflex Type PA, CP, PR and PF conduits
- Nylon 66 body provides lightweight, corrosion-resistant construction
- Snap connection supports quick conduit installation
- Suitable for applications requiring high ingress protection when correctly assembled
Applications
- Electrical cable protection systems
- Control panels and electrical enclosures
- Industrial machinery and automation equipment
- Commercial building services and equipment wiring
- Connecting 28 mm flexible conduit to threaded entries or knockout panels
Standards & Compliance
- Applicable to flexible conduit systems covered by AS/NZS 61386.23; verify project-specific product certification and installation requirements
- Electrical installation selection and installation should comply with AS/NZS 3000 where applicable
Environmental Benefits
- Durable nylon 66 construction can support extended service life and reduce replacement waste
- Lightweight polymer construction reduces material use and transport weight compared with metal alternatives
- Corrosion resistance supports longer service life in damp or chemically exposed environments
Warranty Information
Specific Adaptaflex warranty duration is not published. Australian Consumer Law consumer guarantees apply to eligible purchases; warranty claims are subject to ABB and distributor terms.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
