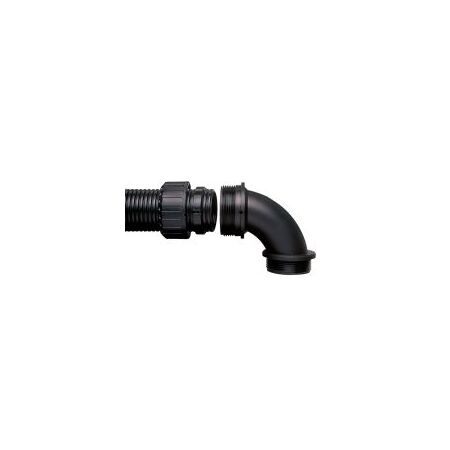

Adaptaseal 90 Degree Elbow 42mm Conduit M40 Male Black Adaptaflex
Adaptaseal 90 degree elbow features 42mm conduit size, fixed M40 male thread and nylon 66 body in black. Ideal for connecting flexible conduit to threaded entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptaflex Adaptaseal 90 Degree Elbow, ASC42/M40/C90/BL, Nylon Conduit Elbow, Fixed Male Thread Conduit Fitting
Technical Specifications
- Product Type: Adaptaseal Type C90 90° elbow fitting
- Nominal Conduit Size: 42 mm
- Thread Type: Fixed external metric male thread
- Thread Size: M40 x 1.5
- Thread Length: 16 mm
- Body Material: Polyamide Nylon 66
- Colour: Black
- Degree of Protection: IP66, IP67, IP68 and IP69K
- IP68 Performance: 2 bar for 30 minutes
- Temperature Range, Static Applications: -40°C to +120°C
- Temperature Range, Moving Applications: -5°C to +120°C
- Compatible Conduit Series: PA, CP, PR and PF
- Connection Method: Compression sealing system
- Locknut: Supplied with metric-thread versions
- Fire Performance: Self-extinguishing, UL94 V2
- Environmental Compliance: RoHS3 and REACH compliant
- Manufacturer Part Number: ASC42/M40/C90/BL
- EAN: 5020963026782
- Dimensions (H x L x W): 58.5mm x 58mm x 42.5mm
- Weight: 0.1 kg
Key Features
- 90° elbow configuration for routing flexible conduit through a right-angle change of direction
- Fixed external M40 male thread for connection to threaded entries or knockout panels
- Designed for 42 mm nominal flexible conduit
- Nylon 66 body provides a lightweight, durable non-metallic fitting
- IP66 to IP69K protection for demanding cable-protection installations
- IP68-rated protection when correctly assembled, tested at 2 bar for 30 minutes
- Suitable for static and moving applications across a broad temperature range
- Metric locknut supplied for secure knockout installation
- High UV protection and low-smoke, halogen-free material characteristics
Applications
- Connecting 42 mm flexible conduit to threaded electrical enclosures
- Cable protection for industrial control panels and machinery
- Power and data cable routing in commercial and industrial installations
- Right-angle conduit entry through enclosure knockouts
- Installations requiring high ingress protection and non-metallic cable fittings
Standards & Compliance
- AS/NZS 61386.23:2015 is the applicable Australian/New Zealand standard for flexible conduit systems; verify complete system certification for the selected conduit and fitting combination
- Manufacturer technical data references approval to BS EN 61386-1 and BS EN 61386-23
- BSI Kitemark approval KM-35161 is stated for the Adaptaseal Type C90 fitting range
Environmental Benefits
- RoHS3 and REACH compliance supports reduced use of restricted hazardous substances
- Durable Nylon 66 construction can extend service life and reduce replacement waste
- Lightweight non-metallic construction can reduce material use and handling weight compared with equivalent metallic fittings
- Halogen-free, low-smoke material characteristics support safer end-of-life and fire conditions
Warranty Information
ABB standard warranty coverage applies to defects in materials and workmanship for 12 months from delivery, subject to the applicable terms and conditions.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
