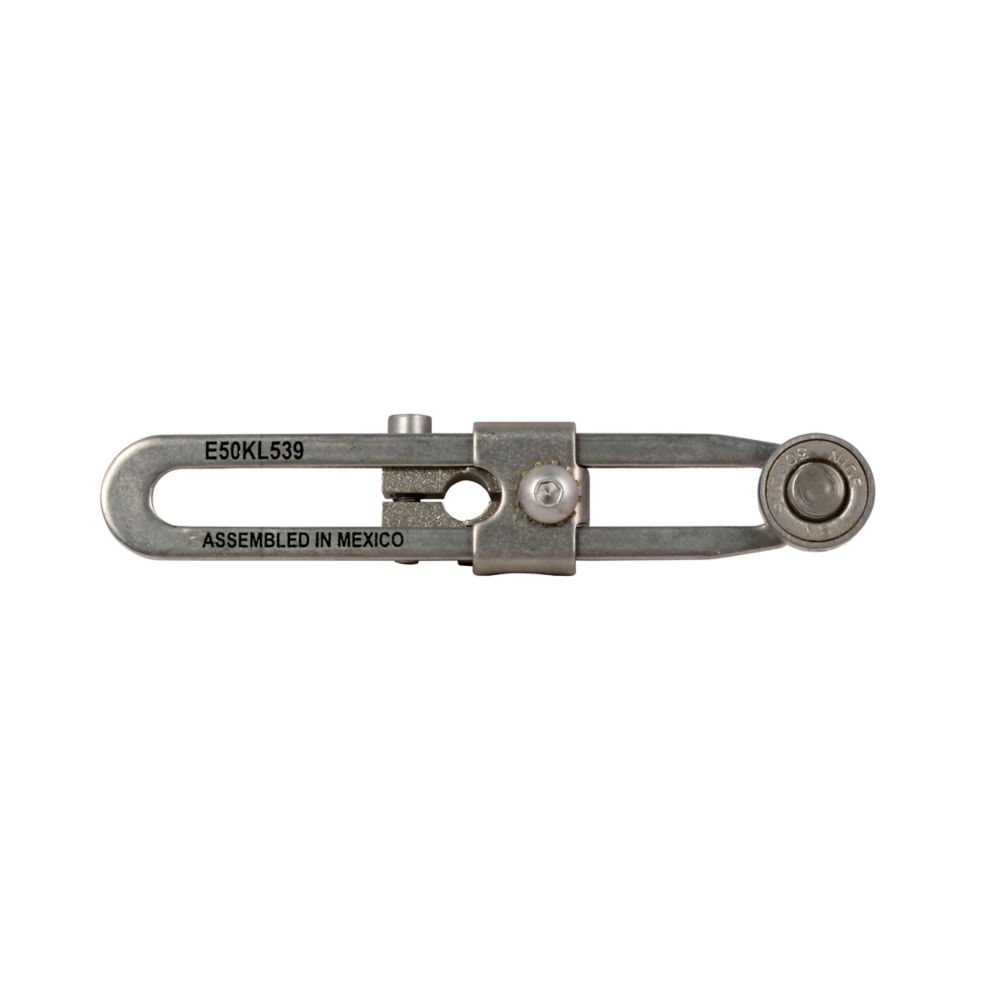

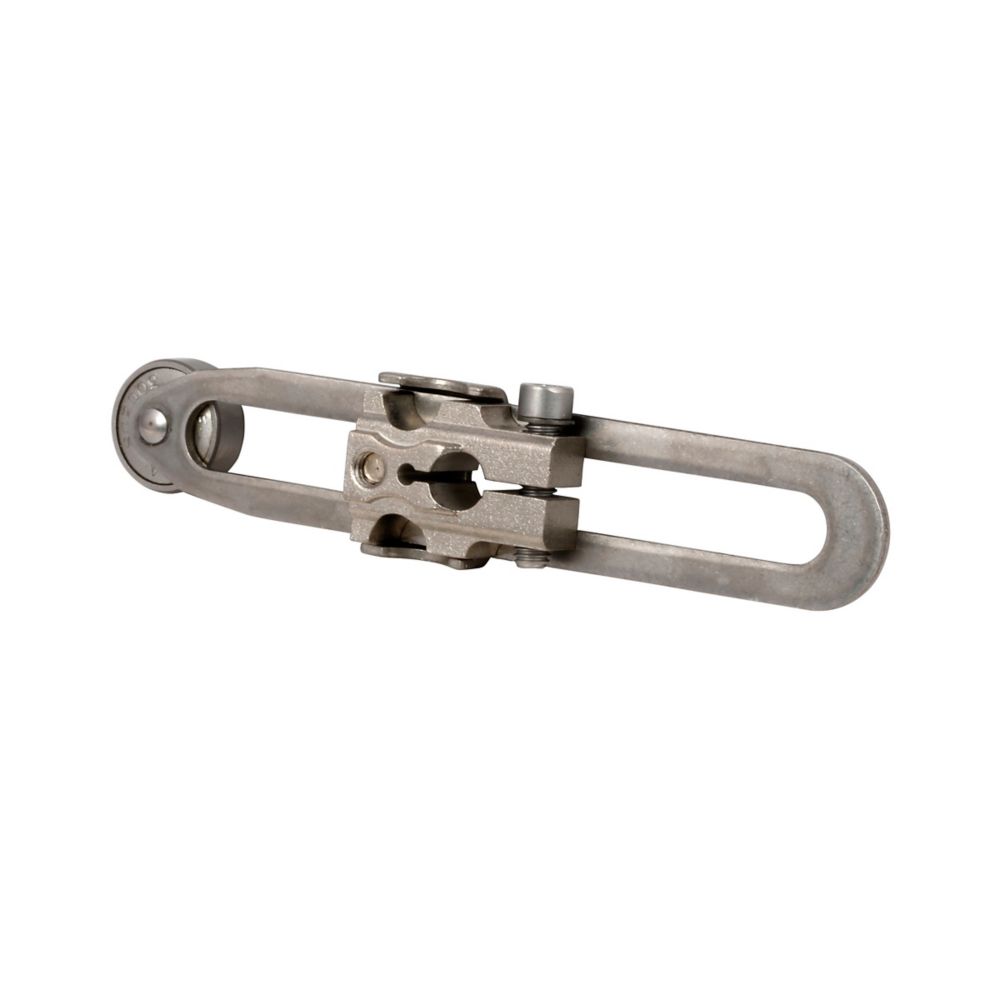

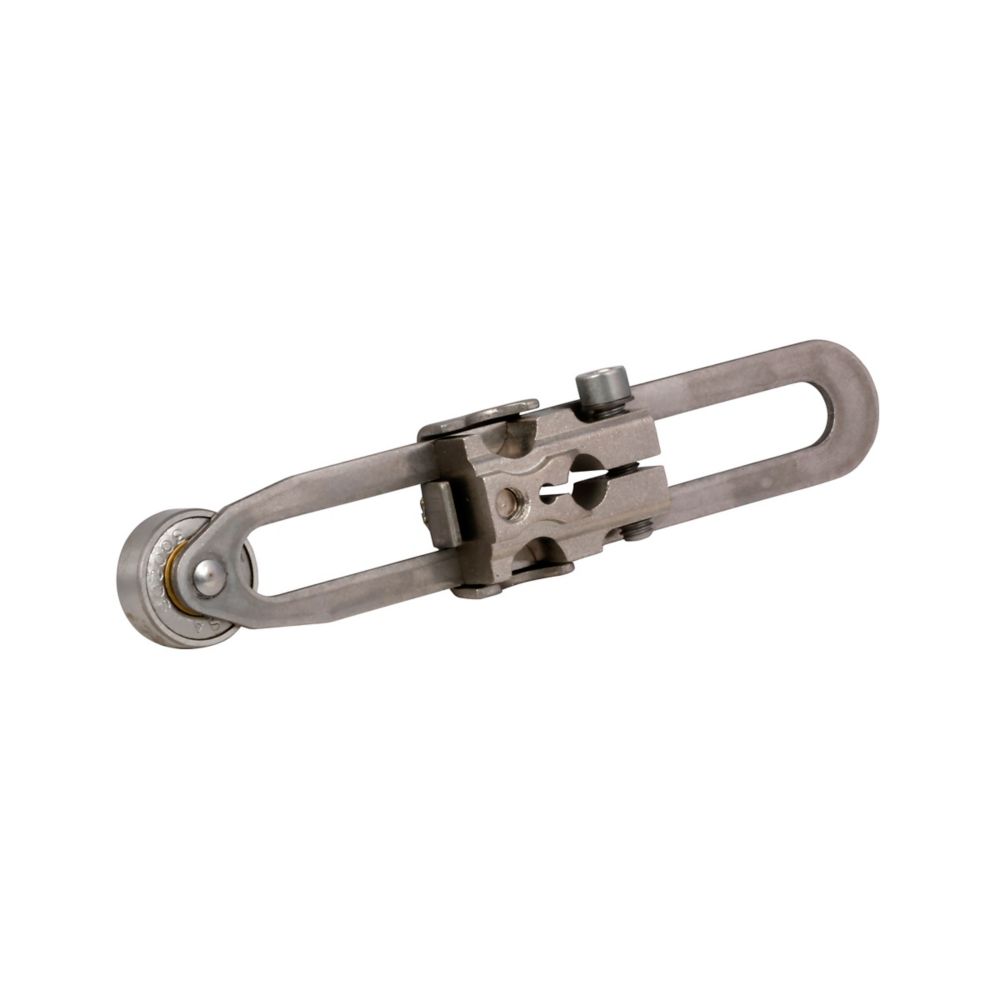

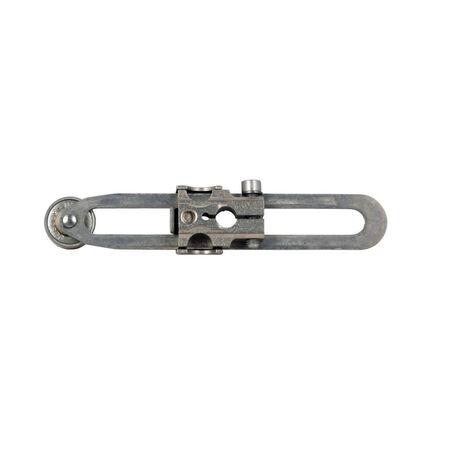

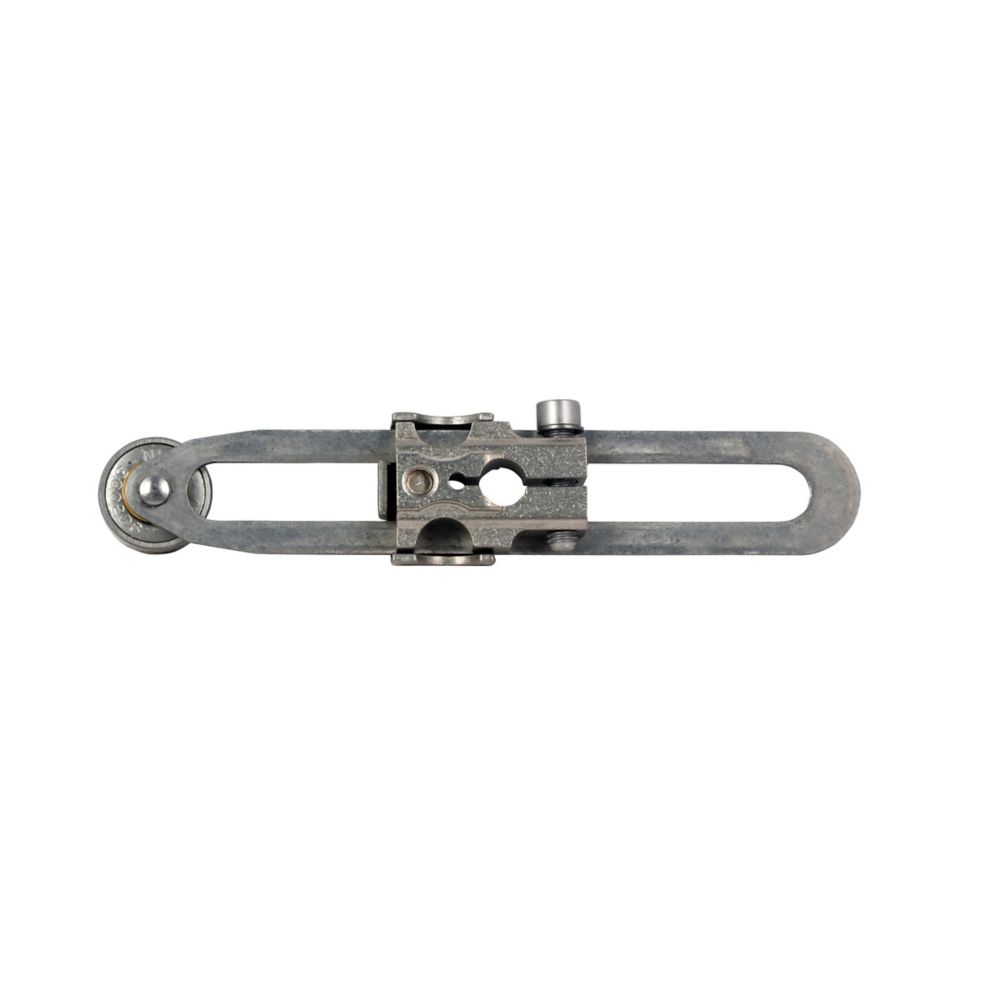

Adjustable Ball Bearing Roller Lever 95mm | Stainless Steel | NEMA Rated | by Eaton
The Adjustable Ball Bearing Roller Lever 95mm is designed for smooth operation in industrial automation control systems. Made from Type 303 stainless steel, it offers exceptional corrosion resistance and is compatible with E50 NEMA heavy-duty limit switches. With an environmental rating of NEMA 1, 3, 4, and IP67, this lever is perfect for harsh environments, ensuring reliable performance in heavy-duty equipment requiring precise position detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Adjustable Ball Bearing Roller Lever 95mm | Stainless Steel | NEMA Rated | by Eaton
Brand: Eaton
SKU: E50KL539
Alternatively Known As: Adjustable roller lever, NEMA limit switch lever, E50 lever actuator, Ball bearing roller lever
Technical Specifications
- Lever length: 3.75 inches (95 mm)
- Roller diameter: 0.75 inch (19 mm)
- Roller width: 0.32 inch (8 mm)
- Material: Type 303 stainless steel lever, steel roller
- Operating temperature: -10°F to 250°F (-23°C to 121°C)
- Environmental rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Certifications: UL Listed, CSA Certified, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 21.3mm x 117mm x 17.5mm
- Weight: 0.1 kg
Key Features
- Adjustable ball bearing roller actuator for smooth operation
- Type 303 stainless steel lever for corrosion resistance
- Compatible with E50 NEMA heavy duty plug-in limit switches
- Suitable for harsh environments with NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, and IP67 ratings
- Operating temperature range from -10°C to 121°C (14°F to 250°F)
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with NEMA limit switch systems to ensure proper adjustment and secure mounting.
Applications
- Industrial automation control systems
- Limit switch actuation in machinery
- Heavy-duty equipment requiring precise position detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable stainless steel construction extends product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50KL539 Adjustable Ball Bearing Roller Lever is available for immediate purchase, ideal for industrial automation and heavy-duty limit switch applications.
