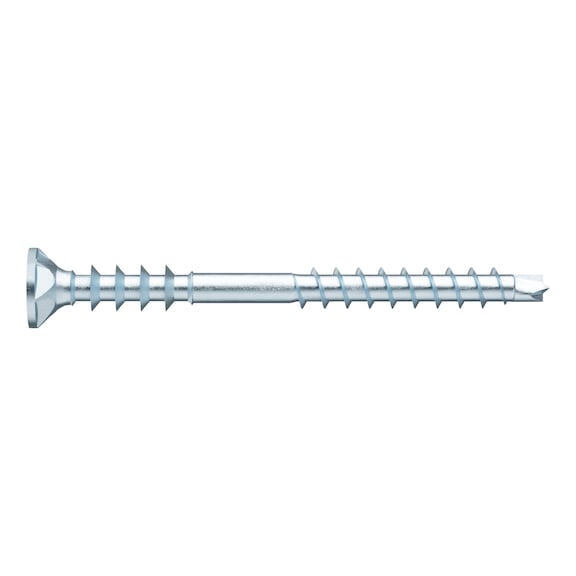

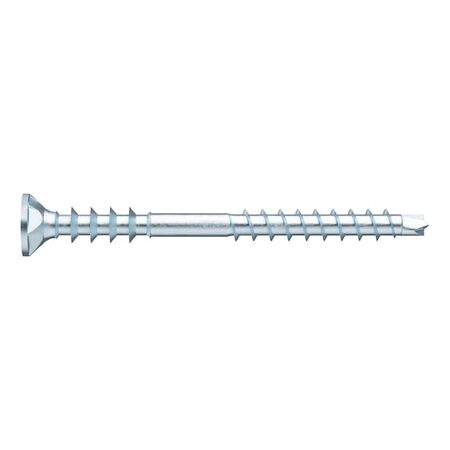

Adjustable Distance Mounting Screw | Zinc-Plated Steel | RW Drive for Optimal Power | @Pack of 100 | by Wurth
The Adjustable Distance Mounting Screw is designed for secure and reliable wood substructure mounting. Featuring a zinc-plated steel construction and RW drive for optimal power transmission, this screw ensures precise positioning and stability. Ideal for professional installations, it offers maximum reliability and reduced need for frequent replacements, making it perfect for spacing assembly and adjusting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Adjustable Distance Mounting Screw | Zinc-Plated Steel | RW Drive for Optimal Power | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 234466130
Alternatively Known As: Adjustable wood mounting screw, Countersunk wood screw, Zinc plated wood screw, RW drive wood screw, Jamo Plus mounting screw
Technical Specifications
- Dimensions (H x L x W): 130mm x 130mm x 12mm
- Weight: 0.15 kg
Key Features
- Approved screw for adjustable distance mounting of wooden substructures on wood
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- More stability and precise positioning due to tight-fit recess and perfect fit of the bit
- Fewer bit changes, one bit for many screw diameters
- Permanent attachment of components with fixed connection of two wooden parts through ring-shaped fixing grooves
- Clearance adjustment between two components by turning the screw back
- Maximum reliability due to asymmetrical single thread
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical arrangement of thread flanks
- Precise positioning and very clean drilling due to advanced centring drill tip
- Positioning and drilling without chipping
- Maximum drilling performance and precise drilling process through drilling cutting edges similar to Forstner bits
- Precise positioning on hard surfaces without slipping thanks to centring pin
- Quick screwing due to gentle start of thread
- High strength values and ductility due to adjusted heat treatment
- Material: Hardened steel with zinc plated surface
Professional Installation Requirements
- Recommended installation by professionals familiar with wood substructure mounting for optimal performance and safety.
Applications
- Spacing assembly
- Adjusting
- Substructure mounting of wooden substructures on wood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction reduces need for frequent replacements
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for wood substructure mounting and spacing assembly applications.
