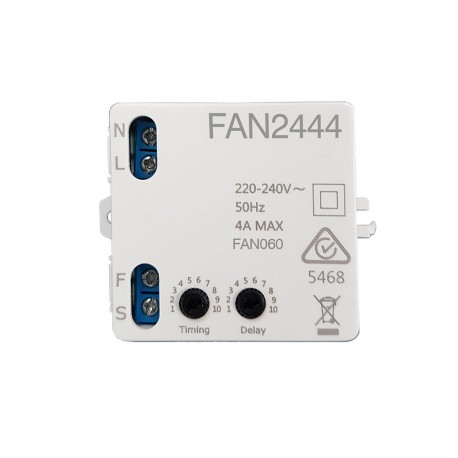

Adjustable Fan Run-On Timer 0-20min Ventair
Fully Adjustable Fan Run-on-Timer (0-20 Min) with Start Delay (0-5min) by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adjustable Exhaust Fan Timer, Bathroom Fan Run-On Timer, Fan Delay-Start Timer
Technical Specifications
- Model Number: FAN2444
- Regulatory Part Number: FAN7060
- Input: 220–240V AC, 50Hz
- Maximum Load: 960W, equivalent to 4A maximum at 240V
- Run-On Time: Adjustable from 0 seconds to 20 minutes
- Start Delay: Adjustable from 0 seconds to 5 minutes
- Fan Compatibility: AC or EC exhaust fan motors
- Installation Location: Wall-mounted flush box or fan-light assembly
- Indicator: LED setting and test-mode indication
- Dimensions (H x L x W): 58mm x 42mm x 25mm
- Weight: 0.1 kg
Key Features
- Fully adjustable fan run-on period from 0 seconds to 20 minutes
- Adjustable start delay from 0 seconds to 5 minutes
- Compatible with suitable AC and EC exhaust fan motors
- Designed for installation in a wall-mounted flush box or fan-light assembly
- LED indication assists with timer adjustment and testing
- Suitable for bathroom, toilet and laundry ventilation applications
Professional Installation Requirements
- Installation must be carried out by a qualified or registered electrician. Wiring and installation should comply with current electrical regulations, including AS/NZS 3000 where applicable. The timer must be safely enclosed inside a suitable flush box or terminal box before power is connected.
Applications
- Bathroom exhaust fans
- Toilet ventilation systems
- Laundry exhaust fans
- Residential ventilation systems
- Light-commercial ventilation systems using compatible AC or EC fans
Standards & Compliance
- Installation wiring should comply with AS/NZS 3000:2018 Australian/New Zealand Wiring Rules
Environmental Benefits
- Adjustable run-on duration can help reduce unnecessary fan operation and electricity consumption
- Supports continued removal of moisture and odours to help reduce condensation-related mould risk
- Controlled ventilation runtime may help reduce operating wear and extend fan system service life
Warranty Information
2-year manufacturer warranty for the FAN2444 model. Australian Consumer Law rights apply in addition to the manufacturer warranty. Commercial use is subject to Ventair's applicable warranty conditions.
Available Now
Available through authorised Ventair distributors in Australia.
