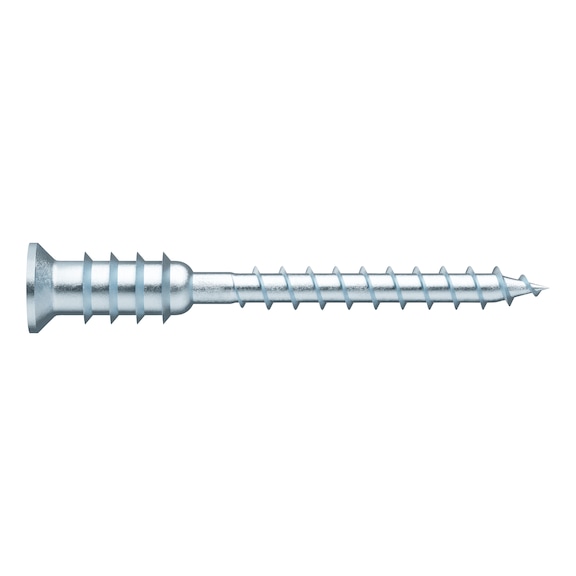

Adjustable Mounting Screw | Countersunk Head | Zinc-Plated Steel | 100 PCS | by Wurth
The adjustable mounting screw is designed for precise distance adjustments in wooden substructures, featuring a durable zinc-plated steel construction. Ideal for construction and woodworking applications, it ensures optimal power transmission with its RW drive and offers a secure attachment for wooden parts, making it perfect for both professional and DIY projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Adjustable Mounting Screw | Countersunk Head | Zinc-Plated Steel | 100 PCS | by Wurth
Brand: Wurth
SKU: 234564120
Alternatively Known As: Adjustable mounting screw, countersunk head screw, wood substructure screw, zinc-plated adjustment screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 120 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 83 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable for use in dowel
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 120mm x 120mm x 12mm
- Weight: 0.05 kg
Key Features
- Screw for making adjustments to mounting distance of wooden substructures
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- One-handed working with precise positioning due to tight-fit recess
- Permanent attachment of components with fixed connection of wooden parts
- Ring-shaped fixing grooves at the bottom of the head for secure anchoring
- Clearance adjustment by turning the screw back
- Asymmetrical single thread for maximum reliability
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Friction-free screw fitting in plastic anchors and compressed wood materials
- Rapid bite through continuous thread design to the tip
- Non-spreading screwing due to tip geometry
- High strength and ductility from adjusted heat treatment
- Zinc plated hardened steel for durability
Professional Installation Requirements
- Professional installation recommended to ensure correct adjustment and secure fixing, especially for structural applications.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Suitable for use with dowels
Standards & Compliance
- AS/NZS 4785 – Timber fasteners and fixings (related standard for screws and fasteners in construction)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Available for immediate purchase, ideal for construction and woodworking applications requiring adjustable mounting screws.
