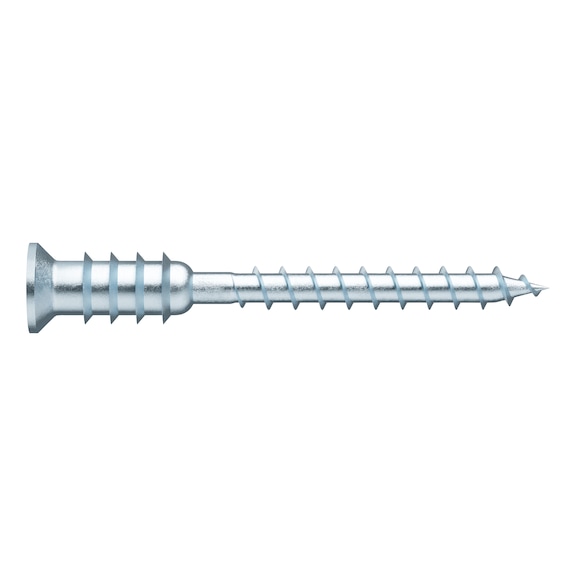

Adjustable Mounting Screw | Zinc-Plated Steel | Countersunk Head | 100 PCS | by Wurth
The adjustable mounting screw is designed for precise distance adjustments in wooden substructures, featuring a durable zinc-plated steel construction. Ideal for construction professionals, it ensures excellent anchoring and power transmission with its RW drive and asymmetrical thread design, making it perfect for fixing wooden parts on various surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Adjustable Mounting Screw | Zinc-Plated Steel | Countersunk Head | 100 PCS | by Wurth
Brand: Wurth
SKU: 234564145
Alternatively Known As: Adjustable mounting screw, Wood substructure screw, Countersunk head screw, Zinc plated wood screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 145 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 83 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable for use in dowel materials
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 145mm x 12mm
- Weight: 0.15 kg
Key Features
- Screw designed for making adjustments to mounting distance of wooden substructures
- Ideal power transmission due to RW drive
- Larger contact area at the bit for more power
- One-handed working with precise positioning due to tight-fit recess
- Permanent attachment of components with fixed connection of wooden parts
- Clearance adjustment between components by turning the screw back
- Asymmetrical single thread for maximum reliability
- Excellent anchoring in wood with asymmetrical thread flanks
- Non-spreading screwing due to tip geometry without component to reduce splitting
- High strength and ductility from adjusted heat treatment
- Zinc plated hardened steel for durability and corrosion resistance
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper adjustment and secure fixing.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Substructure mounting and adjustment
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Available for immediate purchase, ideal for construction and substructure mounting applications.
