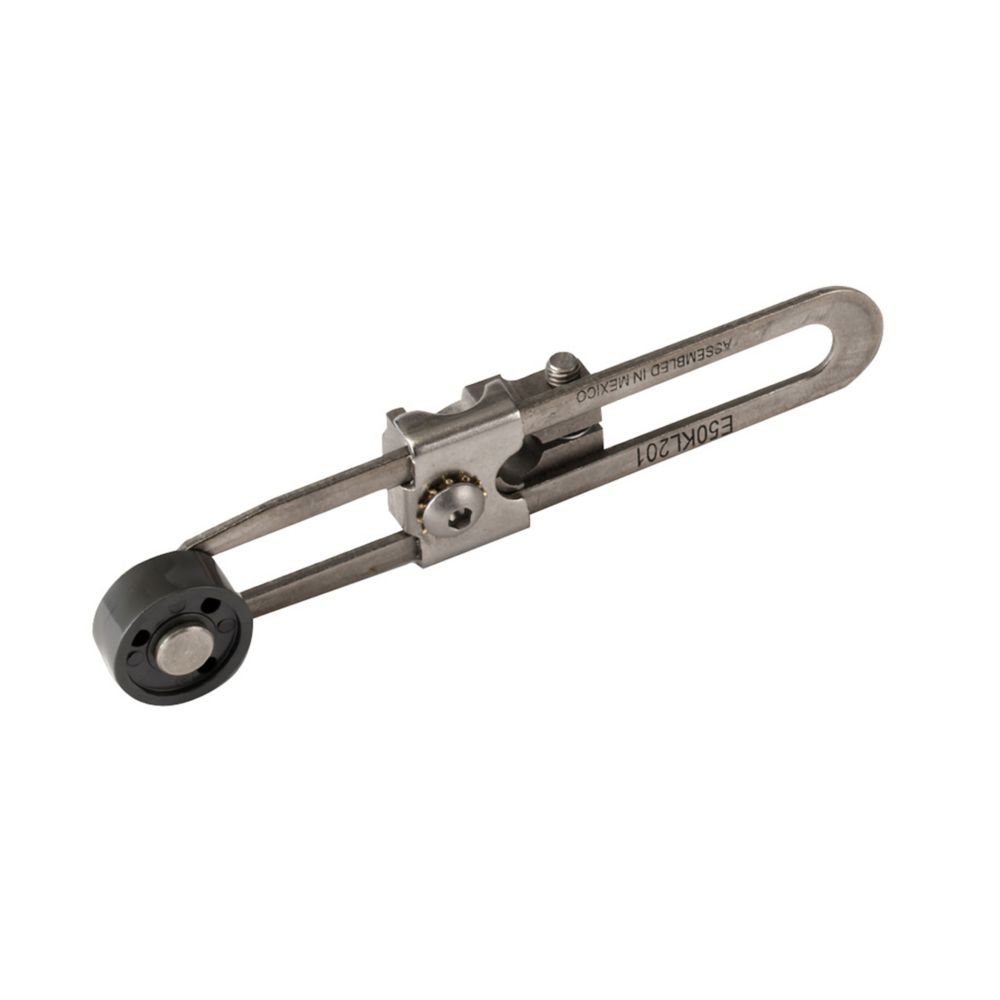

Adjustable Roller Lever 95mm | Type 303 Stainless Steel | Nylatron Roller | NEMA Rated | @Each by Eaton
The Adjustable Roller Lever 95mm is designed for precise actuation in industrial automation control systems. Made from durable Type 303 stainless steel with a Nylatron roller, it operates effectively in a wide temperature range of -10°C to 121°C. Ideal for limit switch applications, this lever ensures reliable performance and compliance with various environmental ratings, making it a perfect choice for heavy-duty machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Adjustable Roller Lever 95mm | Type 303 Stainless Steel | Nylatron Roller | NEMA Rated | @Each by Eaton
Brand: Eaton
SKU: E50KL201
Alternatively Known As: E50 Adjustable Roller Lever, E50 NEMA Limit Switch Lever, Rotary Lever for Limit Switch, E50KL201 Lever Roller
Technical Specifications
- Material: Type 303 Stainless Steel lever, Nylatron roller
- Roller Diameter: 0.75 inch (19 mm)
- Roller Width: 0.32 inch (8 mm)
- Lever Length: 3.75 inch (95 mm)
- Operating Temperature Range: -10°C to 121°C (14°F to 250°F)
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Torque Rating: Minimum 1.90 in-oz return
- Certifications: UL Listed, CSA Certified, CE Marked
- Compliance: RoHS Compliant
- Dimensions (H x L x W): 21mm x 117mm x 19mm
- Weight: 0.1 kg
Key Features
- Adjustable roller lever for precise actuation
- Type 303 stainless steel lever for durability
- Nylatron roller with 0.75 inch diameter and 0.32 inch width
- Wide operating temperature range from -10°C to 121°C (14°F to 250°F)
- Compatible with E50 NEMA limit switch series
- Environmental ratings include NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Torque rating of minimum 1.90 in-oz return
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with limit switch assemblies to ensure proper adjustment and compliance with safety standards.
Applications
- Industrial automation control systems
- Limit switch actuation in machinery
- Rotary lever applications requiring adjustable roller
- Heavy duty plug-in limit switch operator accessory
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials extend product life reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50KL201 Adjustable Roller Lever is available for immediate purchase, ideal for industrial automation and limit switch applications.
