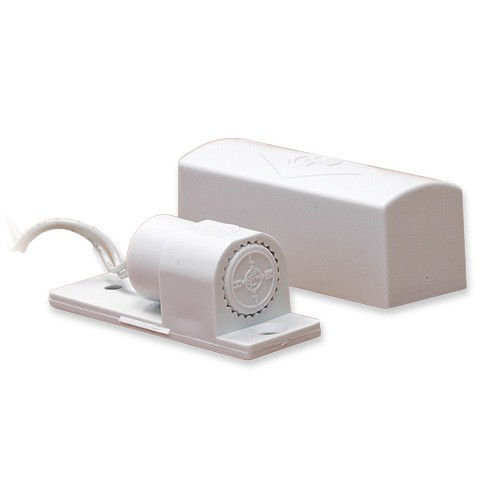

Adjustable Vibration Sensor Gold Plated Contacts Ness
Ness adjustable vibration sensor features gold plated contacts and direct Ness panel connection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness Vibration Sensor, Nessensor MKII, Adjustable Vibration Detector, Shock Sensor
Technical Specifications
- Model: VIB500
- Sensor Type: Hardwired vibration and shock detector
- Contacts: Gold-plated normally closed vibration contacts
- Sensitivity: Adjustable High, Medium and Low settings
- Connection: Direct connection to Ness control panel zone inputs
- Tamper: Normally closed tamper loop
- Cable: 350 mm four-core flying lead
- Mounting: Screw-mounted bracket with two 3 mm holes spaced 27 mm apart
- Compatibility: Ness control panels and most third-party vibration analysers
- Construction: Adjustable barrel sensor with mounting bracket
- Dimensions (H x L x W): 36mm x 51mm x 20mm
- Weight: 0.1 kg
Key Features
- Gold-plated contacts for reliable low-voltage switching
- Three selectable sensitivity levels: High, Medium and Low
- Sensitivity can be adjusted at the sensor and control panel
- Directly connects to Ness control panel zone inputs
- Normally closed vibration contacts for alarm signalling
- Separate normally closed tamper loop
- Suitable for detecting forced entry through windows, doors, walls and fences
- Can be mounted on vertical, horizontal or angled surfaces
Professional Installation Requirements
- Installation should be performed by a suitably qualified security technician. Mount the sensor horizontally with the selected sensitivity marker pointing upwards, secure it with screws and connect the vibration and tamper circuits to appropriate alarm zones.
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Window and door forced-entry detection
- Wall and fence vibration detection
- Perimeter security systems
- Ness alarm panel installations
Standards & Compliance
- AS/NZS 2201.1:2007 – relevant to the design, installation, commissioning and maintenance of intruder alarm systems
Environmental Benefits
- Hardwired operation avoids disposable battery replacement and associated battery waste
- Gold-plated contacts resist corrosion, supporting reliable operation and extended service life
- Durable construction may reduce replacement frequency and product waste
- Ness maintains RoHS compliance documentation for its product range
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Faulty products are repaired or replaced at Ness Corporation’s discretion, subject to warranty conditions.
Available Now
Available through Ness Corporation and authorised Australian security distributors.
