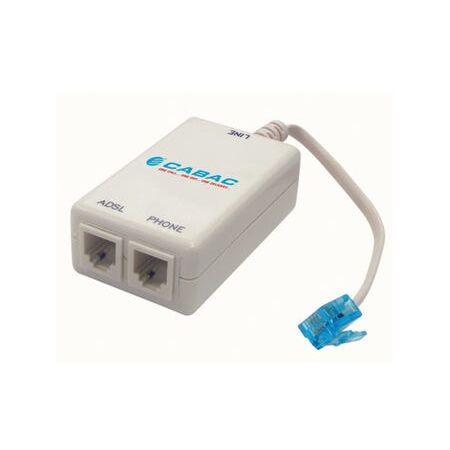

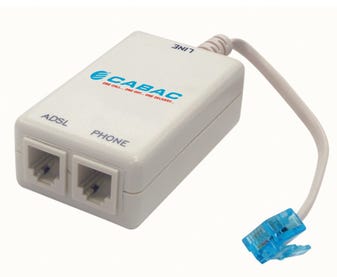

ADSL2+ Splitter Filter | Inline Design | High Performance | Easy Installation by Cabac
ADSL2+ splitter filter with an inline design and high performance—ideal for optimizing your internet connection. Built for home and office use, it ensures seamless connectivity with easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ADSL2+ Splitter Filter | Inline Design | High Performance | Easy Installation by Matchmaster
Brand: Cabac
SKU: ADSL0082PL
Alternatively Known As: ADSL Splitter, Inline ADSL Filter, ADSL2+ Line Splitter, Phone Line Filter, DSL Splitter
Technical Specifications
- Reference Impedance Zr: 270ohm + (750ohm // 150nF)
- Reference Impedance Zsl: 82ohm + (600ohm // 68nF)
- Insertion Loss @ 1 kHz: Less than 1 dB
- Insertion Loss Distortion: Less than 1 dB
- Delay Distortion (200Hz - 4000 Hz): Less than 250 µs
- ADSL Off-Hook Isolation (30 kHz - 350 kHz): > 34 dB
- ADSL Off-Hook Isolation (350 kHz - 2204 kHz): > 55 dB
- ADSL Band Attenuation (30 kHz - 2204 kHz): > 55 dB
- Voice Band Unbalance About Earth: 50 Hz to 600 Hz > 46 dB, 600 Hz to 3400 Hz > 53 dB, 3400 Hz to 4000 Hz > 46 dB
- ADSL Band Attenuation: 4 kHz - 30 kHz > 40 dB, 30 kHz - 140 kHz > 50 dB, 140 kHz - 2208 kHz > 50 dB, 2208 kHz - 5.0 MHz > 30 dB
- DC Current Range: 15 mA to 100 mA
- DC Resistance: Non-linear device, voltage drop less than 3V at 30 mA
- Insulation Resistance: Greater than 10 MΩ
- Voice Band Noise: Less than -75 dBmp using 600 ohm, less than -50 dBm unweighted
- Ringing Frequency Loss (18 Hz to 28 Hz): Voltage drop less than 2 Vrms
- Return Loss: 300 Hz - 3400 Hz > 12 dB, 3400 Hz - 4000 Hz > 8 dB
- Dimensions (H x L x W): 20mm x 100mm x 60mm
- Weight: 0.05 kg
Key Features
- Splits ADSL line into one filtered RJ12 socket for phone and one non-filtered RJ12 socket for ADSL 2+ modem
- Compatible with all popular handsets and cordless phones
- Complies with existing ACA regulations
- RoHS compliant
- Works with ADSL2+
- Conforms to RCIT.0004
- Telstra listed
- Compliant to AS/ACIF S041 : 2005
- Meets ETSI TS 101 952-1-5 Option A
- High quality low pass filter for optimum performance
- Compatible with Mode-3 connection
Professional Installation Requirements
- Installation by a qualified telecommunications technician is recommended to ensure proper connection and compliance with ACA regulations.
Applications
- Splitting ADSL line into filtered phone and non-filtered ADSL modem connections
- Compatible with all popular handsets and cordless phones
- Use in residential and commercial telecom setups requiring ADSL2+ connectivity
Standards & Compliance
- Compliant to AS/ACIF S041 : 2005
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Supports efficient ADSL2+ connectivity reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Splitter Filter Inline ADSL2+ is available for immediate purchase. Ideal for telecom setups requiring ADSL2+ line splitting with phone and modem connections.
