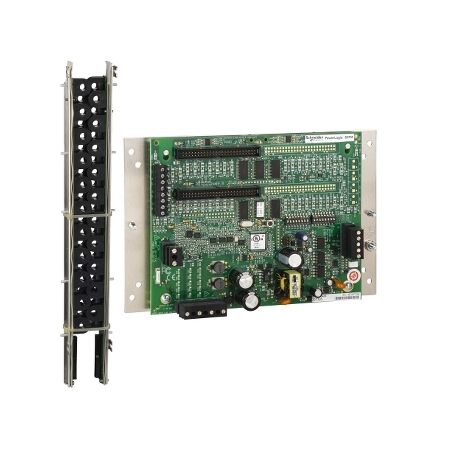

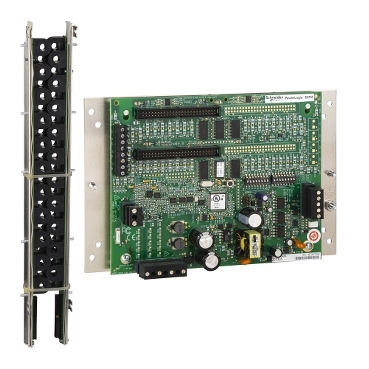

ADV Board.2 Adapter Board | Supports 30 CTs | High-Accuracy Monitoring | by Clipsal
The ADV Board.2 Adapter Board is designed for advanced branch circuit power monitoring, supporting up to 30 split core current transformers (CTs) rated at 50A each. Ideal for commercial and industrial applications, this robust board enables real-time energy usage analysis and integrates seamlessly with Schneider Electric/Clipsal BCPM systems, ensuring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ADV Board.2 Adapter Board | Supports 30 CTs | High-Accuracy Monitoring | by Clipsal
Brand: Clipsal
SKU: SCHBCPMSCA30S
Alternatively Known As: BCPM Adapter Board, Branch Circuit Power Monitoring Adapter, 30 Channel CT Adapter, Clipsal Power Monitoring Board
Technical Specifications
- Supports up to 30 split core CTs (50A each)
- Compatible with Schneider Electric/Clipsal BCPM systems
- Adapter board for advanced power monitoring applications
- High-accuracy current measurement for branch circuits
- Robust PCB design for reliable long-term operation
- Dimensions (H x L x W): 30mm x 350mm x 120mm
- Weight: 1.2 kg
Key Features
- Supports 30 split core current transformers (CTs) up to 50A each
- Designed for advanced branch circuit power monitoring (BCPM)
- Enables real-time energy usage and load analysis
- Facilitates integration with Schneider Electric/Clipsal BCPM systems
- Robust and reliable adapter board construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with power monitoring systems and electrical safety standards.
Applications
- Commercial and industrial electrical panels
- Data centers for branch circuit power monitoring
- Facilities management for energy usage tracking
- Electrical distribution boards requiring advanced monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables detailed energy monitoring to support energy efficiency initiatives
- Assists in identifying power wastage and optimizing electrical loads
- Supports compliance with green building and sustainability standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ADV Board.2 Adapter Board (SCHBCPMSCA30S) is available for immediate purchase. Ideal for commercial and industrial power monitoring applications requiring advanced energy management.
