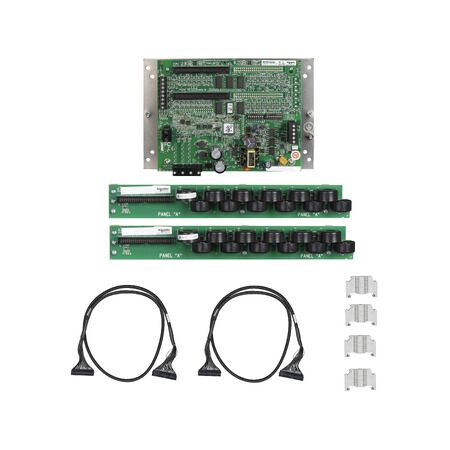

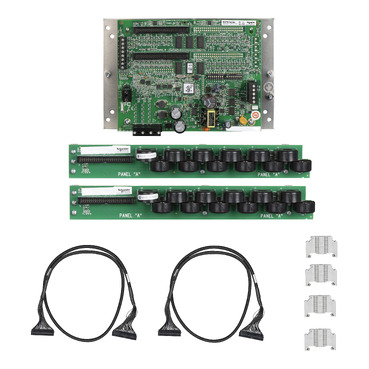

ADV Board.2 Adapter Board | Supports 42 CTs | 50A per Channel | Advanced Power Monitoring | @Pack of 1 | by Clipsal
The ADV Board.2 Adapter Board is designed for advanced branch circuit power monitoring, supporting up to 42 split core current transformers (CTs) with a maximum rating of 50A each. Ideal for commercial and industrial applications, this robust board facilitates real-time energy usage and load analysis, ensuring efficient energy management and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ADV Board.2 Adapter Board | Supports 42 CTs | 50A per Channel | Advanced Power Monitoring | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBCPMSCA42S
Alternatively Known As: BCPM Adapter Board, Branch Circuit Power Monitoring Adapter, 42 Channel CT Adapter, Clipsal Power Monitoring Board
Technical Specifications
- Supports 42 split core current transformers (CTs)
- Maximum CT rating: 50A per channel
- Compatible with Schneider Electric/Clipsal BCPM systems
- Adapter board for advanced power monitoring applications
- Robust PCB design for reliable operation
- Dimensions (H x L x W): 40mm x 200mm x 300mm
- Weight: 2.5 kg
Key Features
- Supports 42 split core current transformers (CTs) up to 50A each
- Designed for advanced branch circuit power monitoring (BCPM)
- Enables real-time energy usage and load analysis
- Facilitates integration with Schneider Electric/Clipsal BCPM systems
- Robust and reliable adapter board construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with power monitoring systems and electrical safety standards.
Applications
- Commercial and industrial electrical panels
- Data centers for branch circuit power monitoring
- Facilities management for energy usage tracking
- Electrical distribution boards requiring advanced monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables detailed energy monitoring to support energy efficiency initiatives
- Assists in identifying power wastage and optimizing load distribution
- Supports compliance with green building and sustainability standards
Warranty Information
12 months manufacturer's warranty covering defects in materials and workmanship.
Available Now
The Clipsal ADV Board.2 Adapter Board (SCHBCPMSCA42S) is available for immediate purchase. Ideal for commercial and industrial power monitoring applications requiring advanced energy management.
