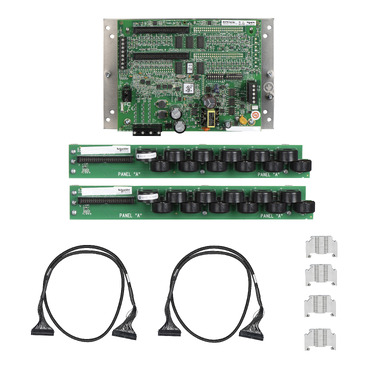

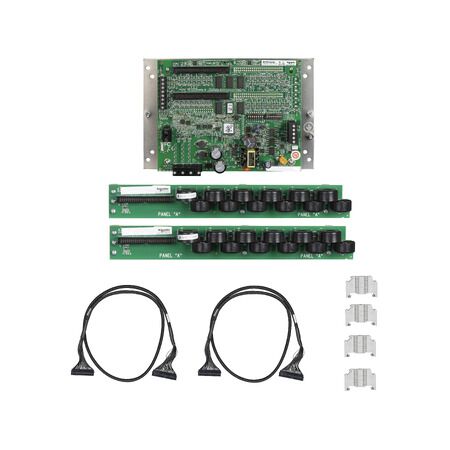

ADV Board.4 Adapter Board | Supports 60 CTs | 50A per Circuit | BCPM Compatible | @Pack of 1 | by Clipsal
The ADV Board.4 Adapter Board is designed for advanced branch circuit power monitoring, supporting up to 60 split core current transformers (CTs) rated at 50A each. Ideal for commercial and industrial electrical panels, this board facilitates detailed energy usage analysis and load management, ensuring efficient power monitoring and compliance with Australian standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ADV Board.4 Adapter Board | Supports 60 CTs | 50A per Circuit | BCPM Compatible | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBCPMSCA60S
Alternatively Known As: BCPM Adapter Board, Branch Circuit Power Monitoring Adapter, 60 Circuit CT Adapter, Clipsal Power Monitoring Board
Technical Specifications
- Supports 60 split core current transformers (CTs)
- CT rating: 50A per circuit
- Compatible with BCPM (Branch Circuit Power Monitoring) systems
- Adapter board for advanced power monitoring applications
- Designed for integration into electrical distribution panels
- Dimensions (H x L x W): 40mm x 200mm x 300mm
- Weight: 2.5 kg
Key Features
- Supports up to 60 split core current transformers (CTs) at 50A each
- Designed for advanced branch circuit power monitoring (BCPM)
- Enables detailed energy usage analysis and load management
- Compatible with Schneider Electric/Clipsal BCPM systems
- Facilitates easy integration into existing electrical panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with power monitoring systems to ensure safety and compliance with Australian standards.
Applications
- Commercial and industrial electrical panels
- Data centers for branch circuit power monitoring
- Facilities management for energy usage tracking
- Electrical distribution boards requiring advanced monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Helps identify and reduce unnecessary power consumption
- Supports compliance with green building and sustainability standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ADV Board.4 Adapter Board for BCPM Power Monitoring (SCHBCPMSCA60S) is available for immediate purchase. Ideal for commercial and industrial electrical panels requiring advanced energy monitoring.
