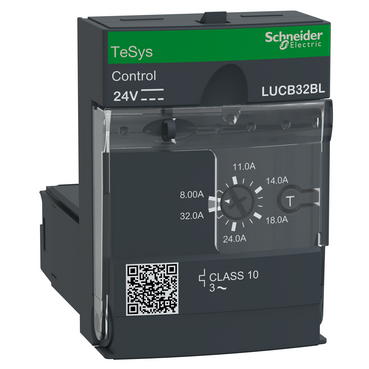

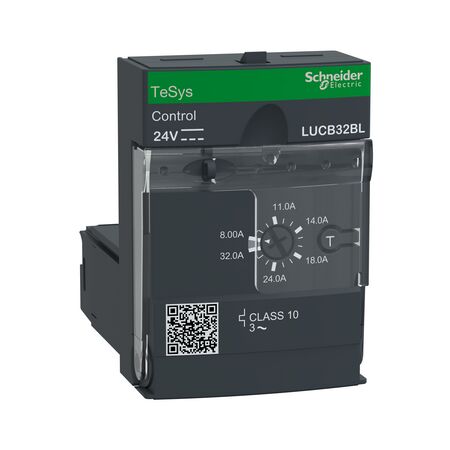

Advanced Control Unit 8-32A 24V DC | Class 10 Motor Protection | Compact Design | by Clipsal
The Advanced Control Unit 8-32A 24V DC is designed for reliable motor protection and control in industrial applications. With a current range of 8 to 32A and a robust Class 10 rating, it ensures optimal performance for automation systems and motor control panels. Ideal for licensed electricians, this unit enhances energy efficiency and reduces equipment downtime, making it a perfect choice for manufacturing and pumping stations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Advanced Control Unit 8-32A 24V DC | Class 10 Motor Protection | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHLUCB32BL
Alternatively Known As: LUCB Motor Protection Relay, Schneider LUCB32BL, Motor Control Unit 8-32A 24VDC, Advanced Motor Controller
Technical Specifications
- Current Range: 8-32A
- Control Voltage: 24V DC
- Class: 10 (motor protection)
- Mounting: DIN rail
- Operating Temperature: -20°C to +60°C
- IP Rating: IP20
- Standards: IEC/EN 60947-4-1
- Dimensions (H x L x W): 120mm x 130mm x 45mm
- Weight: 0.6 kg
Key Features
- Advanced control unit for motor protection and control
- Current range: 8 to 32A
- Operates on 24V DC supply
- Class 10 motor protection
- Compact and robust design
- Reliable performance for industrial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations.
Applications
- Industrial motor control panels
- Automation systems
- Manufacturing equipment
- Pumping stations
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances energy efficiency by providing precise motor control
- Reduces equipment downtime and maintenance, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Advanced Control Unit LUCB 8-32A 24V DC (SCHLUCB32BL) is available for immediate purchase. Ideal for industrial motor control and automation applications.
