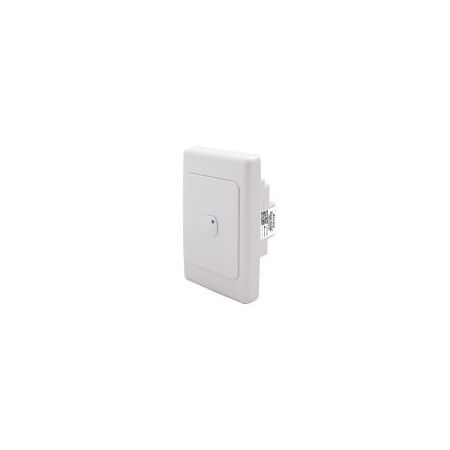

Advanced Wall Timer Switch 230V 10A S-Click

BRAND: CABAC
SKU: HNS220TD
$182.20 List price: $242.90
+ −
30 Days Return Electricians Unlock Trade Access
S-Click advanced wall timer features 230V 10A rating, timer and restart timer modes, and 8A motor load switching. Ideal for pool and spa pumps, fans and motors.

Alternatively Known As: HNS220TD Advanced Wall Timer, S-Click Motor Timer Switch, Restart Timer Switch, Pool Pump Timer, Fan Timer Switch

Technical Specifications
  • Model: HNS220TD
  • Operating Voltage: 230–240V AC, 50Hz
  • Maximum Load: 10AX
  • Motor Load: 8A
  • Timer Range: 10 seconds to 15 hours
  • Timer Accuracy: ±0.5%
  • Operating Temperature: 0°C to +50°C
  • Terminals: Screw terminals suitable for 1.5–4.0mm² stranded conductors
  • Switching Configuration: Selectable normally open or normally closed
  • Status Indicator: Configurable blue LED
  • Mounting Compatibility: One-gang Australian faceplate mechanism
  • Wall Plate Compatibility: Clipsal and HPM style wall plates
  • Dimensions (H x L x W): 115mm x 40mm x 70mm
  • Weight: 0.2 kg
Key Features
  • Timer switch and restart timer operating modes
  • Two-second press can restart the countdown while the load is operating
  • Single tap can switch the load off before timeout
  • Switches motor loads up to 8A
  • Adjustable timeout period from 10 seconds to 15 hours
  • Configurable load state during timing operation
  • Blue LED status indication with timing and final-countdown flashes
  • Suitable for retrofitting Clipsal 2031VETR3 and 31VETR3 timer switches
  • Designed and engineered in Australia
Professional Installation Requirements
  • Must be installed as part of a fixed-wire electrical installation by a licensed electrical contractor or suitably qualified person. Installation should comply with AS/NZS 3000, and mains power must be isolated at the circuit breaker before work begins.
Applications
  • Pool and spa pump control
  • Exhaust fan timing
  • Fan motor control
  • Heater timing
  • Commercial and car park lighting control
  • Residential and commercial fixed-wire electrical installations
  • Retrofit replacement for compatible Clipsal timer switches
Standards & Compliance
  • AS/NZS 3100 electrical safety requirements
  • AS/NZS 60669.2.1 for switches for household and similar fixed-electrical installations
  • CISPR 15 electromagnetic compatibility requirements
  • AS/NZS 3000 Wiring Rules for the fixed electrical installation
Environmental Benefits
  • Automatically switches connected equipment off after the selected period, helping reduce unnecessary electricity use
  • Can support more efficient operation of pumps, fans and motors by limiting run time
  • Long service life in a fixed installation can reduce replacement and electronic waste
  • Electrical and electronic components should be disposed of through appropriate e-waste recycling channels
Warranty Information

Cabac’s general warranty provides repair or replacement for defective goods for 12 months from the date of purchase where no product-specific warranty is stated, subject to correct installation, use and proof of purchase. Australian Consumer Law rights also apply. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns/))

Available Now

Available through S-Click/Cabac and authorised Australian electrical distributors.
