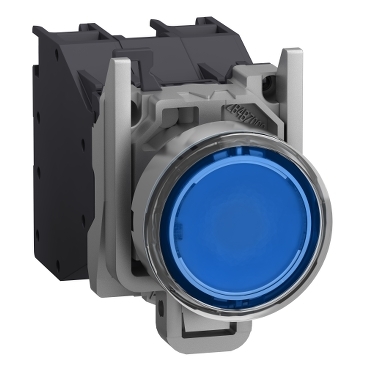

AEx Illuminated Push Button Blue 24-240V | Explosion-Proof | IP66/IP67 Rated | @Pack of 1 | by Clipsal
The AEx Illuminated Push Button Blue 24-240V is designed for hazardous environments, featuring a blue LED for clear status indication and an explosion-proof design. With a durable elastomer boot and IP66/IP67 ingress protection, it's perfect for industrial control panels and process automation systems, ensuring reliable operation in tough conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AEx Illuminated Push Button Blue 24-240V | Explosion-Proof | IP66/IP67 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB4BP683BM5GEX
Alternatively Known As: Explosion Proof Blue Illuminated Push Button, Hazardous Area Push Button, Clipsal SCHXB4BP683BM5GEX, AEx Blue Push Button
Technical Specifications
- Voltage: 24-240V AC/DC
- Illumination: Blue LED
- Contact type: 1 NO + 1 NC
- Protection: Explosion-proof (AEx certified)
- Boot material: Durable elastomer for environmental sealing
- Mounting diameter: 22mm
- Ingress protection: IP66/IP67
- Dimensions (H x L x W): 50mm x 33mm x 33mm
- Weight: 0.15 kg
Key Features
- Blue illuminated push button for clear status indication
- Wide voltage range: 24-240V AC/DC
- Protective boot for enhanced durability in harsh environments
- Explosion-proof (AEx) design for hazardous locations
- Robust construction for industrial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced in hazardous area equipment to ensure compliance with safety regulations.
Applications
- Industrial control panels
- Hazardous area control stations
- Process automation systems
- Mining and oil & gas facilities
- Manufacturing plants
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Energy-efficient LED illumination minimizes power consumption
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal AEx Illuminated Push Button Blue 24-240V with Boot is available for immediate purchase. Ideal for hazardous industrial environments requiring reliable and safe control solutions.
