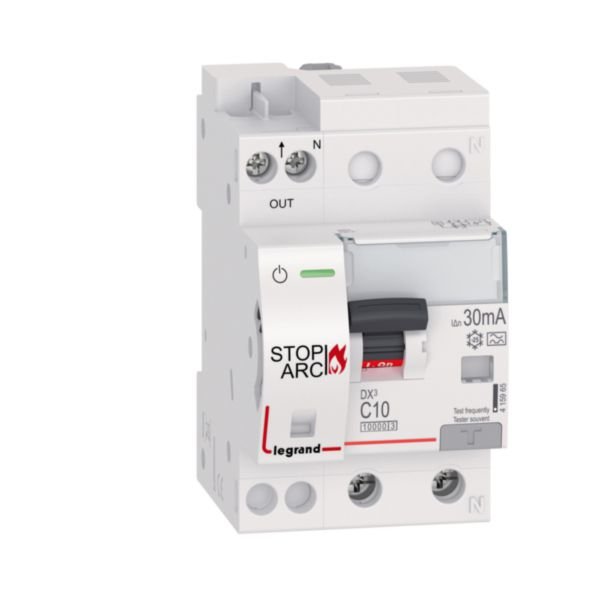

AFDD DX3 STOP ARC 10000A 1 Pole + Neutral | 10A Curve C | 30mA Type A | @EA of 1 | by Legrand
The AFDD DX3 STOP ARC 10000A 1 Pole + Neutral is designed for enhanced electrical safety in residential and small commercial panels. With a breaking capacity of 10kA and a 30mA Type A leakage current detection, it effectively protects against arc faults. Ideal for installations in fire-risk areas, this device ensures compliance with safety standards while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFDD DX3 STOP ARC 10000A 1 Pole + Neutral | 10A Curve C | 30mA Type A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 415965
Alternatively Known As: Arc Fault Detection Device, AFDD Circuit Breaker, DX3 STOP ARC RCBO, Residual Current Circuit Breaker with Overload Protection
Technical Specifications
- Number of poles: 2 (1 pole + neutral)
- Rated voltage: 230 V
- Rated current: 10 A
- Rated leakage current: 30 mA (Type A)
- Breaking capacity: 10 kA according to EN 61009
- Release characteristic: C curve
- Concurrent neutral conductor switching: Yes
- Overvoltage category: 3
- Pollution degree: 2
- Degree of protection: IP20
- Degree of impact strength: IK02
- Operating temperature: -25 to 40 °C
- Storage temperature: -25 to 70 °C
- Terminal capacity: 1.5-16 mm²
- Connection type: Screwed terminal, busbar and cable
- Electric supply direction: From the bottom
- Colour: Grey (RAL 7035)
- Halogen free: Yes
- Dimensions (H x L x W): 96mm x 78mm x 54mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 10000A according to IEC 61009-1 standard
- Tripping threshold between 50A and 100A with C curve characteristic
- Type A leakage current detection with 30mA sensitivity
- Line and load connections via screw terminals supporting up to 16 mm² solid copper cables
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries such as auxiliary contacts and shunt trips
- LED indicator for breaker status and mechanical tripping indicator
- Daily automatic test of arc fault detection function
- Label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper device functionality.
Applications
- Residential and small commercial electrical panels
- Protection of 2P+E power socket circuits in sleeping accommodations
- Premises with fire risk such as barns, woodworking shops, paper mills
- Buildings constructed with combustible materials like wooden houses
- Structures where fire spreads easily such as tower blocks
- Protection of circuits in bedrooms and living rooms
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces energy let-through during faults
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand AFDD DX3 STOP ARC 10000A 1 Pole + Neutral 10A Curve C 30mA Type A is available for immediate purchase, ideal for enhancing electrical safety in residential and small commercial panels.
