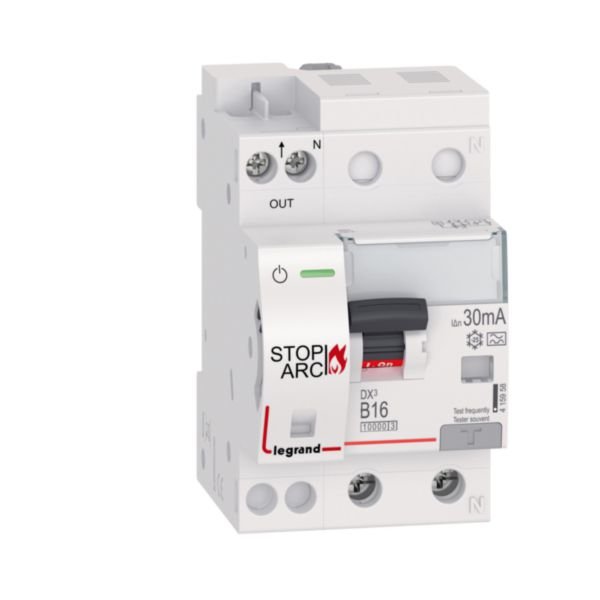

AFDD DX3 STOP ARC 10000A 1 Pole + Neutral | 16A Curve B | 30mA Type A | @EA of 1 | by Legrand
The AFDD DX3 STOP ARC 10000A 1 Pole + Neutral is designed for enhanced fire safety in residential and small commercial electrical installations. With a breaking capacity of 10,000A and Type A leakage current detection at 30mA, it ensures reliable protection against electrical fires. Ideal for circuits in bedrooms and living rooms, this device is built for professional installation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFDD DX3 STOP ARC 10000A 1 Pole + Neutral | 16A Curve B | 30mA Type A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 415958
Alternatively Known As: Arc Fault Detection Device, AFDD Circuit Breaker, Residual Current Circuit Breaker with Overload Protection, RCBO with Arc Fault Detection
Technical Specifications
- Number of poles: 2 (1 pole + neutral)
- Rated voltage: 230 V
- Rated current: 16 A
- Rated fault current: 0.03 A
- Leakage current type: Type A
- Current limiting class: 3
- Rated short-circuit breaking capacity: 10 kA
- Release characteristic: B curve
- Concurrently switching neutral conductor: Yes
- Overvoltage category: 3
- Pollution degree: 2
- Width in modular spacings: 3
- Degree of protection: IP20
- Degree of impact strength: IK02
- Operating temperature range: -25 to 40 °C
- Storage temperature range: -25 to 70 °C
- Nominal voltage range: 180-264 V
- Electric supply direction: From the bottom
- Terminal marking indication: Yes
- Colour: Grey (RAL 7035)
- Halogen free: Yes
- Connection type: Screwed terminal, busbar and cable
- Terminal capacity: 1.5-16 mm²
- Cable nature for connection: Flexible or rigid
- Label space: Yes
- Dimensions (H x L x W): 96mm x 78mm x 54mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 10,000A according to IEC 61009-1 standard
- Tripping threshold between 48A and 80A (B curve)
- Type A leakage current detection with 30mA sensitivity
- Line and load connections via screw terminals supporting up to 16 mm² solid copper cables
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries such as auxiliary contacts and shunt trip
- LED indicator for breaker status and mechanical tripping indicator
- Daily automatic test of arc fault detection function
- Label holder for clear circuit identification
- On/Off handle indication with red and green backgrounds
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper device functionality.
Applications
- Residential and small commercial electrical panels
- Protection of power sockets circuits in sleeping accommodations
- Premises with fire risk such as barns, woodworking shops, paper mills
- Buildings constructed with combustible materials like wooden houses
- Structures where fire spreads easily such as tower blocks
- Circuits in bedrooms and living rooms for enhanced fire safety
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process complying with substance-restriction requirements
- Helps prevent electrical fires, reducing environmental damage and resource loss
Warranty Information
Legrand offers a standard warranty covering manufacturing defects; please refer to official documentation for specific warranty period.
Available Now
The Legrand AFDD DX3 STOP ARC 10000A 1 Pole + Neutral 16A Curve B 30mA Type A is available for immediate purchase, ideal for enhancing fire safety in residential and small commercial electrical installations.
