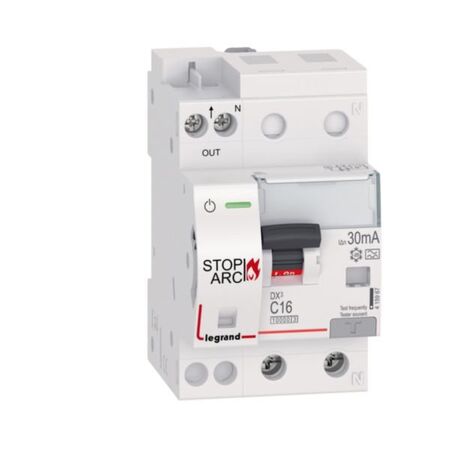

AFDD DX3 STOP ARC 10000A 1 Pole + Neutral 16A Curve C 30mA Type A | IP20 Rated | Energy Limitation Class 3 | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 415967
$147.00 List price: $183.20
+ −
30 Days Return Delivery Options
The AFDD DX3 STOP ARC 10000A is an advanced arc fault detection device designed for residential and small commercial applications. With a breaking capacity of 10 kA and a 30 mA sensitivity for type A leakage current, it ensures enhanced fire safety. Ideal for protecting circuits in homes and fire-risk premises, this device features an IP20 rating and is compatible with Legrand DX3 auxiliaries for added functionality.

Product Name/Title: AFDD DX3 STOP ARC 10000A 1 Pole + Neutral 16A Curve C 30mA Type A | IP20 Rated | Energy Limitation Class 3 | @EA of 1 | by Legrand

Brand: Legrand

SKU: 415967

Alternatively Known As: Arc Fault Detection Device, AFDD Circuit Breaker, Residual Current Circuit Breaker with Overload Protection, RCBO 16A Type A

Technical Specifications
  • Number of poles: 2 (1 pole + neutral)
  • Rated voltage: 230 V
  • Rated current: 16 A
  • Rated leakage current: 0.03 A (30 mA)
  • Leakage current type: Type A
  • Current limiting class: 3
  • Rated short-circuit breaking capacity: 10 kA
  • Release characteristic: Curve C
  • Concurrently switching neutral conductor: Yes
  • Overvoltage category: 3
  • Pollution degree: 2
  • Degree of protection: IP20
  • Degree of impact strength: IK02
  • Operating temperature range: -25 to 40 °C
  • Storage temperature range: -25 to 70 °C
  • Terminal capacity: 1.5-16 mm²
  • Connection type: Screwed terminal, busbar and cable
  • Electric supply direction: From the bottom
  • Dimensions (H x L x W): 96mm x 78mm x 54mm
  • Weight: 0.3 kg
Key Features
  • Breaking capacity of 10000A according to IEC 61009-1 standard
  • Tripping threshold between 80A and 160A (C curve)
  • Detection of type A leakage current with 30mA sensitivity
  • Line and load connections via screw terminals supporting up to 16 mm² solid copper cables
  • IP20 protection against solid bodies larger than 12.5mm
  • Energy limitation class 3 for let-through energy
  • Compatible with Legrand DX3 auxiliaries such as auxiliary contacts and shunt trip
  • LED indicator for breaker status and mechanical tripping indicator for arc faults
  • Daily automatic test of arc fault detection function
  • Label holder for clear circuit identification
  • On/Off status indicated on handle with red and green backgrounds
Professional Installation Requirements
  • Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper device functionality.
Applications
  • Residential: Bedroom and living room circuit protection
  • Small commercial panels: Fire risk premises such as barns, woodworking shops, paper mills
  • Buildings constructed with combustible materials
  • Structures where fire spreads easily like tower blocks
  • Premises with irreplaceable goods requiring enhanced fire safety
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Designed with an environmentally conscious process
  • Halogen-free materials reduce environmental impact
  • Energy limitation class 3 reduces energy let-through during faults
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand AFDD DX3 STOP ARC 10000A 1 Pole + Neutral 16A Curve C 30mA Type A is available for immediate purchase, ideal for enhancing fire safety in residential and small commercial electrical panels.
