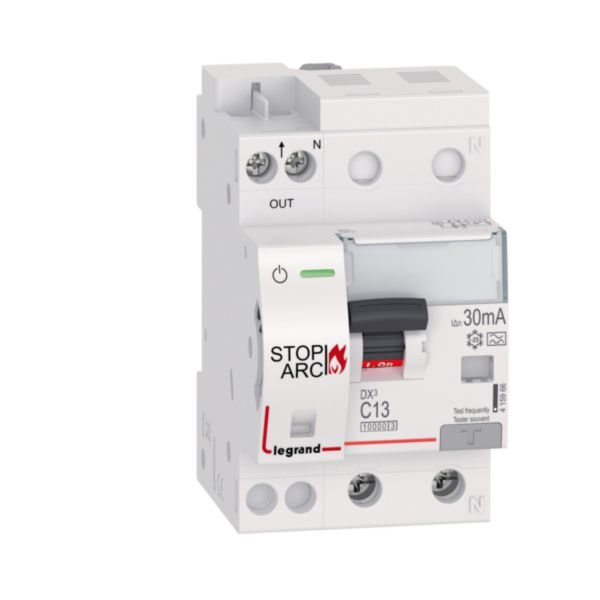

AFDD DX3 STOP ARC 10000A 1 Pole Neutral 30mA Type A Curve C Legrand
The AFDD DX3 STOP ARC 10000A 1 Pole + Neutral is designed for enhanced fire safety in residential and small commercial electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of poles: 2 (1 pole + neutral)
- Rated voltage: 230 V
- Rated current: 13 A
- Rated leakage current: 0.03 A (30 mA)
- Leakage current type: Type A
- Current limiting class: 3
- Rated short-circuit breaking capacity: 10 kA
- Release characteristic: Curve C
- Concurrently switching neutral conductor: Yes
- Overvoltage category: 3
- Pollution degree: 2
- Degree of protection: IP20
- Degree of impact strength: IK02
- Operating temperature range: -25 to 40 °C
- Storage temperature range: -25 to 70 °C
- Nominal voltage range: 180-264 V
- Connection type: Screwed terminal, busbar and cable
- Terminal capacity: 1.5-16 mm²
- Cable nature: Flexible or rigid
- Electric supplying direction: From the bottom
- Terminal marking indication: Yes
- Colour: Grey (RAL 7035)
- Dimensions (H x L x W): 96mm x 78mm x 54mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 10000A according to IEC 61009-1 standard
- Tripping threshold between 65A and 80A with C curve
- Detection of type A leakage current with 30mA sensitivity
- Line and load connections via screw terminals supporting up to 16 mm² solid copper cables
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries such as auxiliary contacts and shunt trip
- LED indicator for breaker status and mechanical tripping indicator
- Label holder for clear circuit identification
- On/Off handle indication with red and green backgrounds
- Daily automatic test of arc fault detection function
- Halogen free design
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper device functionality.
Applications
- Residential and small commercial electrical panels
- Protection of power sockets circuits in sleeping accommodations
- Premises with fire risk such as barns, woodworking shops, paper mills
- Buildings constructed with combustible materials like wooden houses
- Structures where fire spreads easily such as tower blocks
- Circuits in bedrooms and living rooms for enhanced fire safety
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
- Energy limitation class 3 reduces energy let-through during faults
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand AFDD DX3 STOP ARC 10000A 1 Pole + Neutral 13A Curve C 30mA Type A is available for immediate purchase, ideal for enhancing fire safety in residential and small commercial electrical panels.
