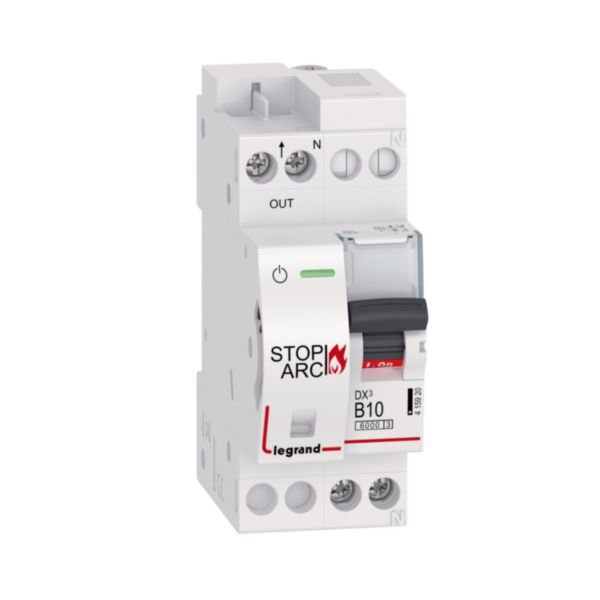

AFDD DX3 STOP ARC 6000A 1 Pole + Neutral | 10A Curve B | IP20 Rated | by Legrand
The AFDD DX3 STOP ARC 6000A 1 Pole + Neutral is an advanced arc fault detection device designed for residential and small commercial applications. With a 10A B curve rating and a breaking capacity of 6000A, it ensures optimal protection against electrical fires. Ideal for use in bedrooms, living rooms, and fire risk premises, this device features an LED indicator for status and a daily automatic test function for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFDD DX3 STOP ARC 6000A 1 Pole + Neutral | 10A Curve B | IP20 Rated | by Legrand
Brand: Legrand
SKU: 415920
Alternatively Known As: Arc Fault Detection Device, AFDD Circuit Breaker, Legrand DX3 STOP ARC MCB, 10A Curve B MCB
Technical Specifications
- Release characteristic: B curve
- Number of poles: 2 (1 pole + neutral)
- Rated current: 10 A
- Rated voltage: 230 V AC
- Rated short-circuit breaking capacity: 6 kA according to EN 60898
- Voltage type: AC
- Current limiting class: 3
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: Yes
- Overvoltage category: 3
- Pollution degree: 2
- Width in modular spacings: 2
- Degree of protection: IP20
- Dimensions (H x L x W): 80mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- Breaking capacity 6000A according to IEC 60898-1 standard
- Tripping threshold between 30A and 50A (B curve between 3 In and 5 In)
- Line connection on bottom side by screw terminals with prong busbar
- Load connection on top side by screw terminals
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 according to IEC 60898-1
- Can be equipped with Legrand DX3 auxiliaries (auxiliary contacts, shunt trip, overvoltage release, power overvoltage protection)
- LED indicator for breaker status
- Mechanical indicator for arc fault tripping
- Label holder for circuit identification
- On/Off indication on handle with red/green backgrounds
- Daily automatic test of arc fault detection function
- Fitted with two DIN rail clamps for easy removal
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper integration into electrical panels.
Applications
- Residential: Bedroom and living room circuit protection
- Small commercial panels: Fire risk premises such as barns, woodworking shops, paper mills
- Buildings constructed with combustible materials
- Structures where fire spreads easily like tower blocks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
- Energy limitation class 3 reduces energy let-through during faults
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand AFDD DX3 STOP ARC 6000A 1 Pole + Neutral 10A Curve B is available for immediate purchase, ideal for enhancing fire safety in residential and small commercial electrical installations.
