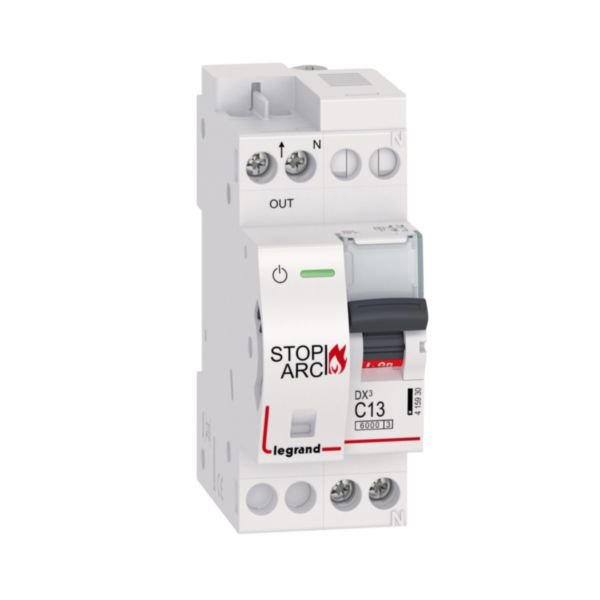

AFDD DX3 STOP ARC 6000A 1 Pole + Neutral | 13A C Curve | IP20 Protection | @EA of 1 | by Legrand
The AFDD DX3 STOP ARC 6000A is an advanced arc fault detection device designed for residential and small commercial applications. With a breaking capacity of 6000A and a tripping threshold of 65A to 130A (C curve), it ensures optimal safety against electrical fires. Ideal for use in bedrooms, living rooms, and fire risk premises, this device features IP20 protection and is compatible with Legrand DX3 auxiliaries for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFDD DX3 STOP ARC 6000A 1 Pole + Neutral | 13A C Curve | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 415930
Alternatively Known As: Arc Fault Detection Device, AFDD Circuit Breaker, Legrand DX3 STOP ARC MCB, 1P+N 13A C Curve Breaker
Technical Specifications
- Rated current: 13 A
- Rated voltage: 230 V AC
- Breaking capacity: 6000 A according to IEC 60898-1
- Tripping threshold: 65A to 130A (C curve)
- Frequency: 50-60 Hz
- Current limiting class: 3
- Overvoltage category: 3
- Pollution degree: 2
- Number of poles: 2 (1 pole + neutral)
- Degree of protection: IP20
- Concurrently switching neutral conductor: Yes
- Width: 2 modular spacings
- Dimensions (H x L x W): 80mm x 70mm x 36mm
- Weight: 0.3 kg
Key Features
- Breaking capacity 6000A according to IEC 60898-1 standard
- Tripping threshold between 65A and 130A (C curve)
- Line connection on bottom side by screw terminals with prong busbar
- Load connection on top side by screw terminals
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let through energy
- Compatible with Legrand DX3 auxiliaries (auxiliary contacts, shunt trip, overvoltage release, POP)
- LED indicator for breaker status
- Mechanical indicator for arc fault tripping
- Label holder for circuit identification
- On/Off indication on handle with red/green backgrounds
- Daily automatic test of arc fault detection function
- Fitted with two DIN rail clamps for easy removal
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper functionality.
Applications
- Residential: Bedroom and living room circuit protection
- Small commercial panels: Fire risk premises such as barns, woodworking shops, paper mills
- Buildings constructed with combustible materials
- Structures where fire spreads easily like tower blocks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce harmful materials
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
Legrand AFDD DX3 STOP ARC 6000A 1 Pole + Neutral 13A Curve C is available for immediate purchase, ideal for enhancing fire safety in residential and small commercial electrical panels.
