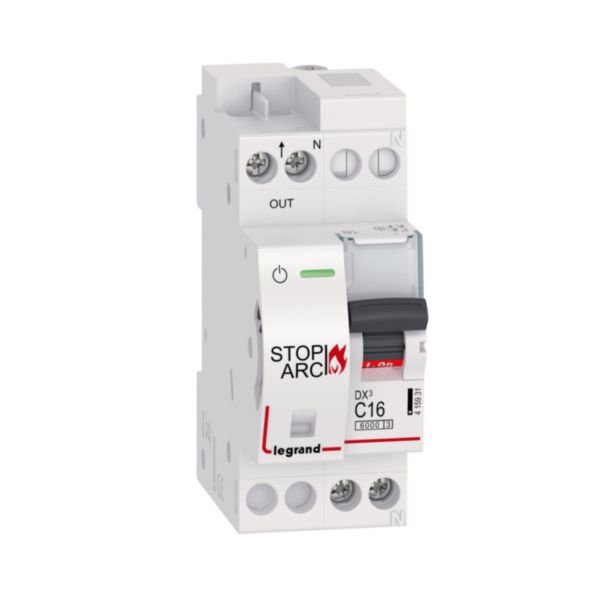

AFDD DX3 STOP ARC 6000A 1 Pole Neutral C Curve IP20 Rated Variant-2 Legrand
The AFDD DX3 STOP ARC 6000A 1 Pole + Neutral is an advanced arc fault detection device designed for residential and small commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Release characteristic: C curve
- Number of poles: 2 (1 pole + neutral)
- Rated current: 16 A
- Rated voltage: 230 V AC
- Rated short-circuit breaking capacity: 6 kA according to EN 60898
- Voltage type: AC
- Current limiting class: 3
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: Yes
- Overvoltage category: 3
- Pollution degree: 2
- Width in modular spacings: 2
- Degree of protection: IP20
- Dimensions (H x L x W): 80mm x 70mm x 36mm
- Weight: 0.3 kg
Key Features
- Breaking capacity 6000A according to IEC 60898-1 standard
- Tripping threshold between 80A and 160A (C curve between 5 In and 10 In)
- Line connection on bottom side by screw terminals with prong busbar
- Load connection on top side by screw terminals
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries (auxiliary contacts, shunt trip, overvoltage release, POP)
- LED indicator for breaker status and mechanical tripping indicator
- Label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
- Daily automatic test of arc fault detection function
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper integration into electrical panels.
Applications
- Residential: Bedroom and living room circuits for fire risk prevention
- Small commercial panels: Premises with combustible materials or fire risk
- Industrial: Barns, woodworking shops, paper mills, and similar environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
- Energy limitation class 3 reduces energy let-through during faults
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand AFDD DX3 STOP ARC 6000A 1 Pole + Neutral 16A Curve C is available for immediate purchase, ideal for enhancing fire safety in residential and small commercial electrical installations.
